WKP 251 GTLR
Art.-Nr. 03-09

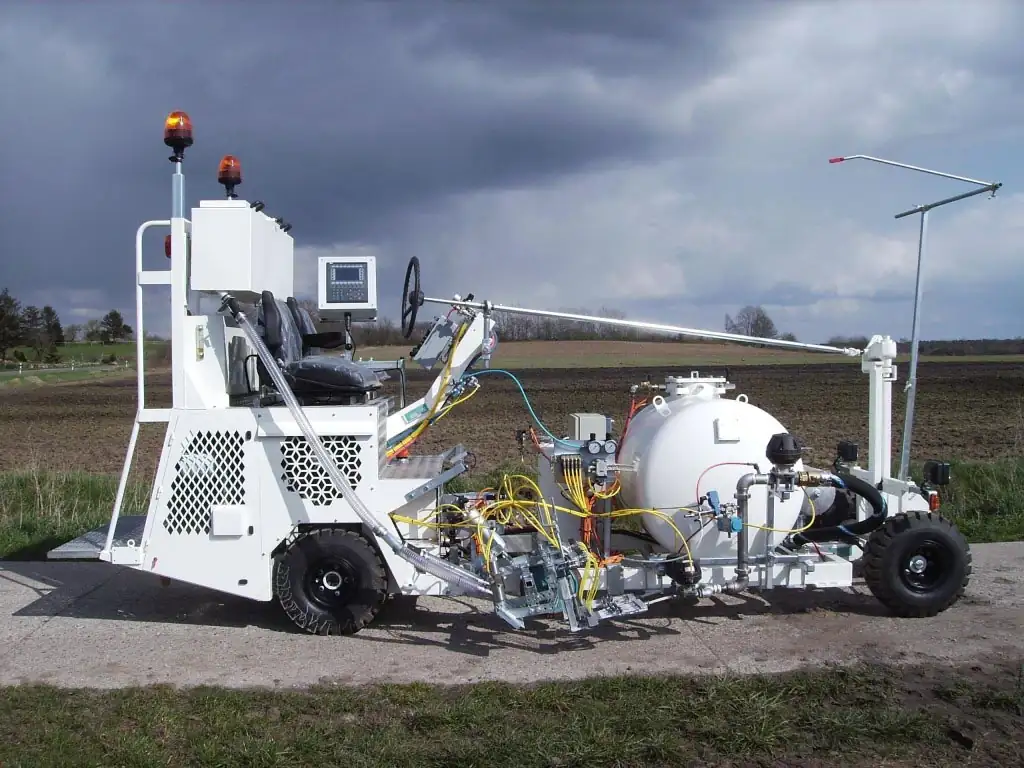

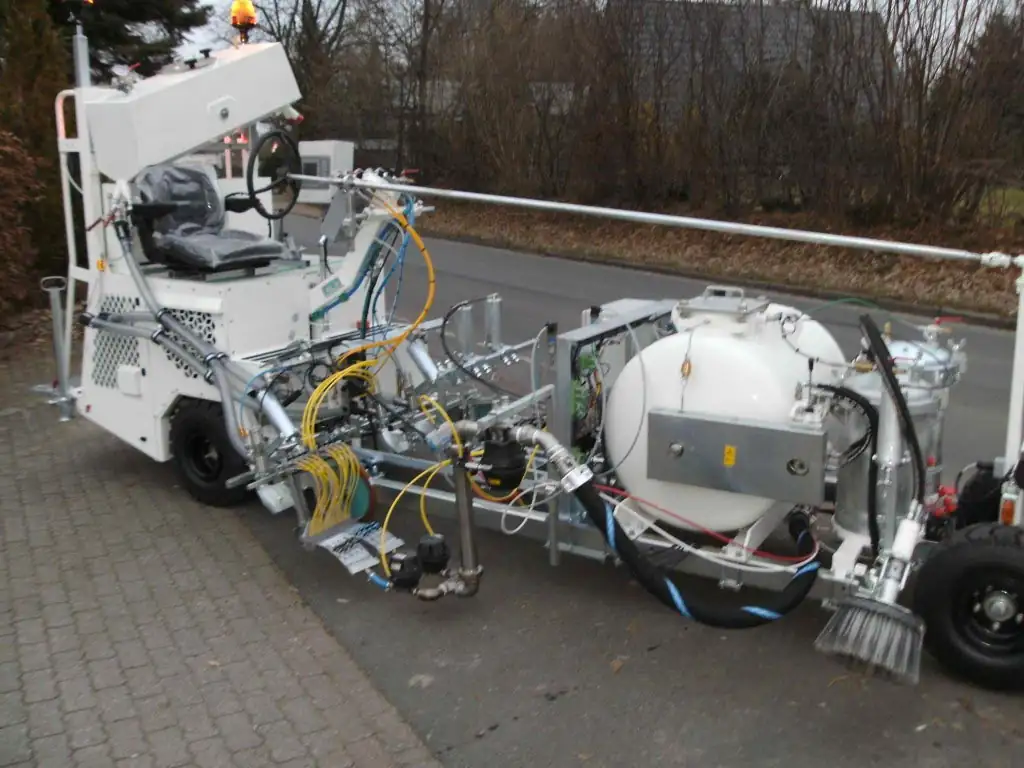

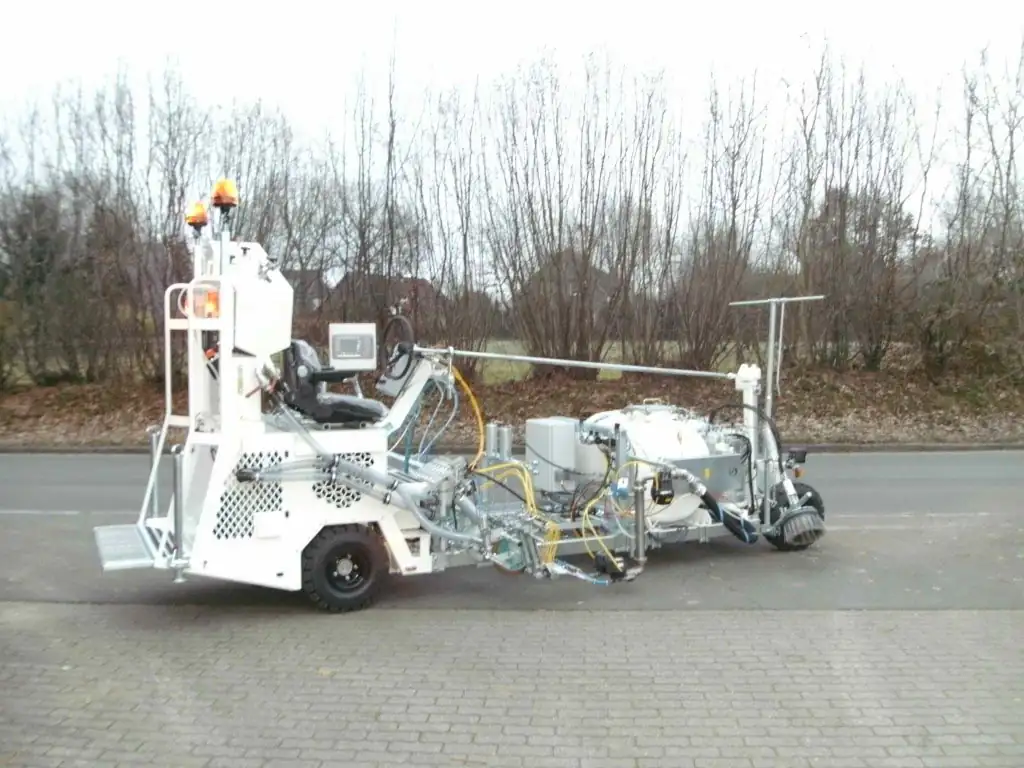

Road marking machine for cold plastic – Spotline
| Machine Type | Road marking machine WKP 251 GTLR – Spotline |
| Engine | Kubota V1505T, 40,8 HP (30 kW) |
| Fuel | diesel, capacity 55 liter |
| Electrical system | 12 V, battery 66 Ah |
| Steering | strong standard mechanical steering, on request hydraulic assisted steering / hydraulic steering |
| Drive / brake system | hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake |
| Wheels | front: 21×8 – 9, 5 hole-rim / rear: 21×8 – 9, 5 hole-rim |
| Compressor | Boge screw type compressor, mechanically driven by poly-v-belt, effective air supply 1150 l/min |
| Operating air pressure | 7 bar, silenced safety valve |
| Paint pressure tank | 420 ltr., with agitator, other container capacities on request |
| Mixing-system | 98 : 2, fluid, static mixer |
| Marker unit | Spotline |
| Additional equipment | on request, solid line, agglomerate and profile |
| Glass bead equipment | on request, metering bead dispenser up to 300 mm |
| Empty- / total weight | approx. 1600 kg / 2600 kg |
| Dimensions Length x width x height | approx. 4,00 m x 1,15 m x 1,80 m (without equipment) |
Right of technical modifications reserved |
State of art: 01.11.2014_en |
