WKSP 48
Art.-Nr. 04-06

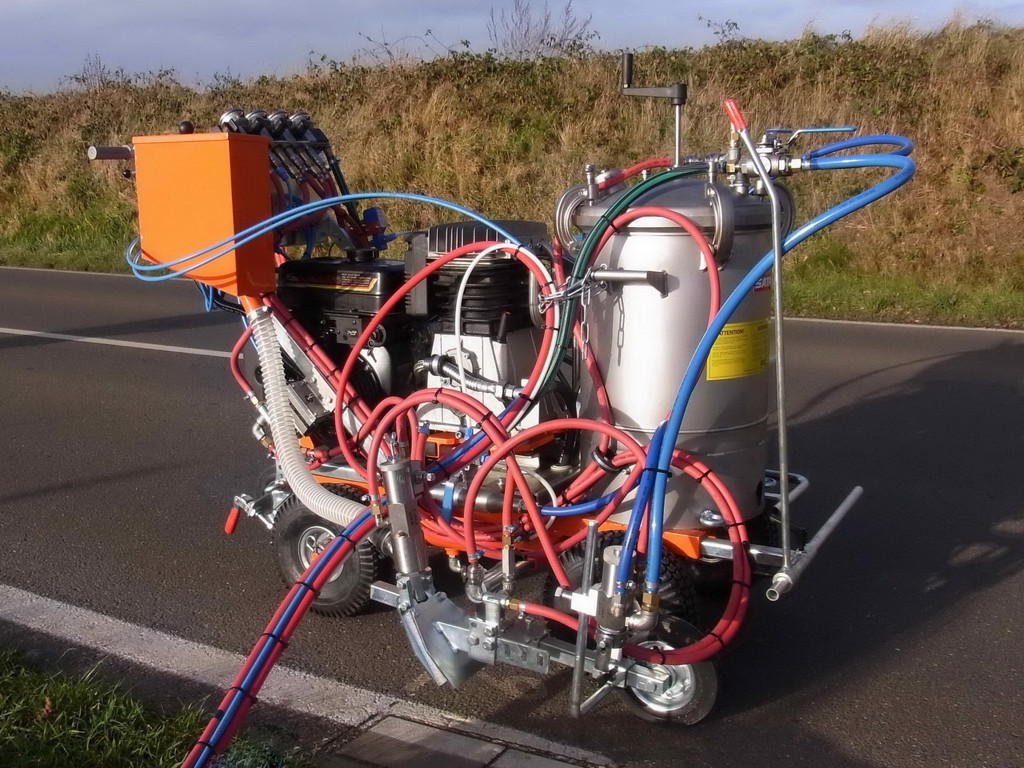

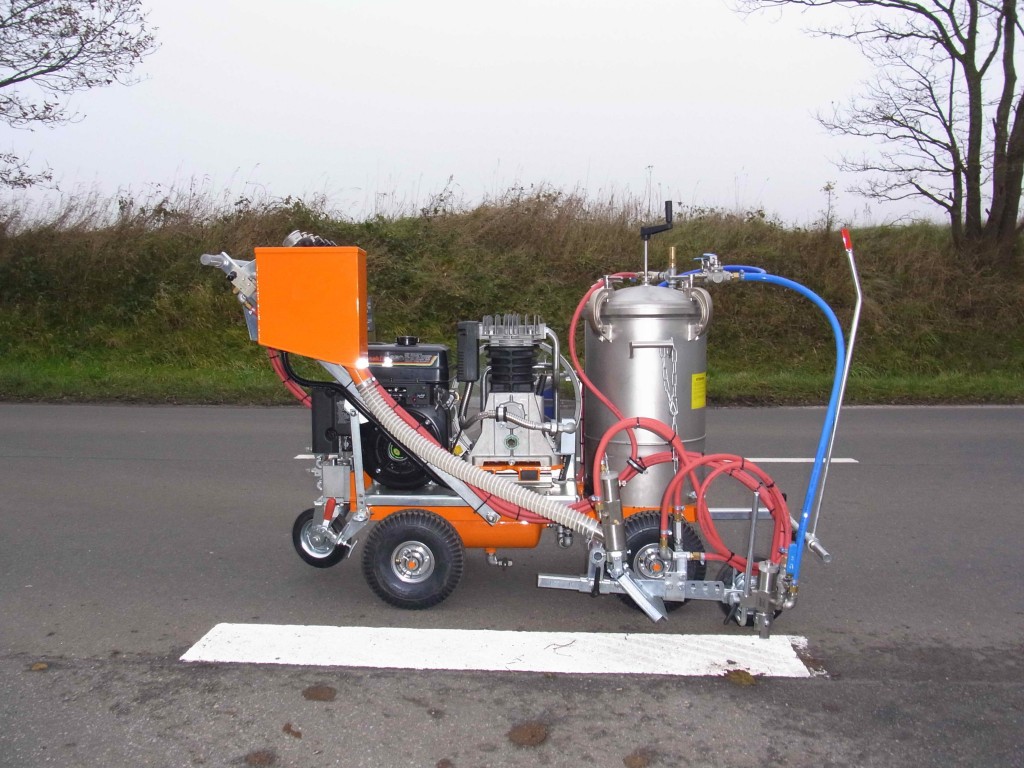

Hand-guided road marking machine for cold sprayplastic
| Machine Type | Hand-guided road marking machine WKSP 48 |
| Engine | Kawasaki FE 350, 10,5 hp (7,6 kW) |
| Fuel | gasoline |
| Electrical system | 12 V, battery 16 Ah, e-start |
| Steering | swivel wheel, pneumatically switchable by cylinder |
| Wheels | 4 pneumatic wheels, d=300 mm, 4 PR |
| Compressor | 2-cylinder, effective air supply 700 ltr./min |
| Operating air pressure | 6 bar, silenced safety valve |
| Paint pressure tank | 48 litres, with agitator, other container capacities on request |
| Hardener pump | 0,02 – 1,5 ltr./min. |
| Pressure tank hardener | approx. 2,0 ltr. |
| Marker unit | discless marker unit, spray gun useable as hand spray gun, on request: with rolling discs marker unit |
| Additional equipment | glass bead equipment with 11 ltr. bead tank, bead gun 10-30 cm dispensing width |
| Empty weight | approx. 120 kg |
| Dimensions Length x width x height | approx. 1,70 m x 1,00m x 1,00 m |
Right of technical modifications reserved |
State of art: 30.03.2016_en |
