WKSP 800/500
Art.-Nr. 01-03

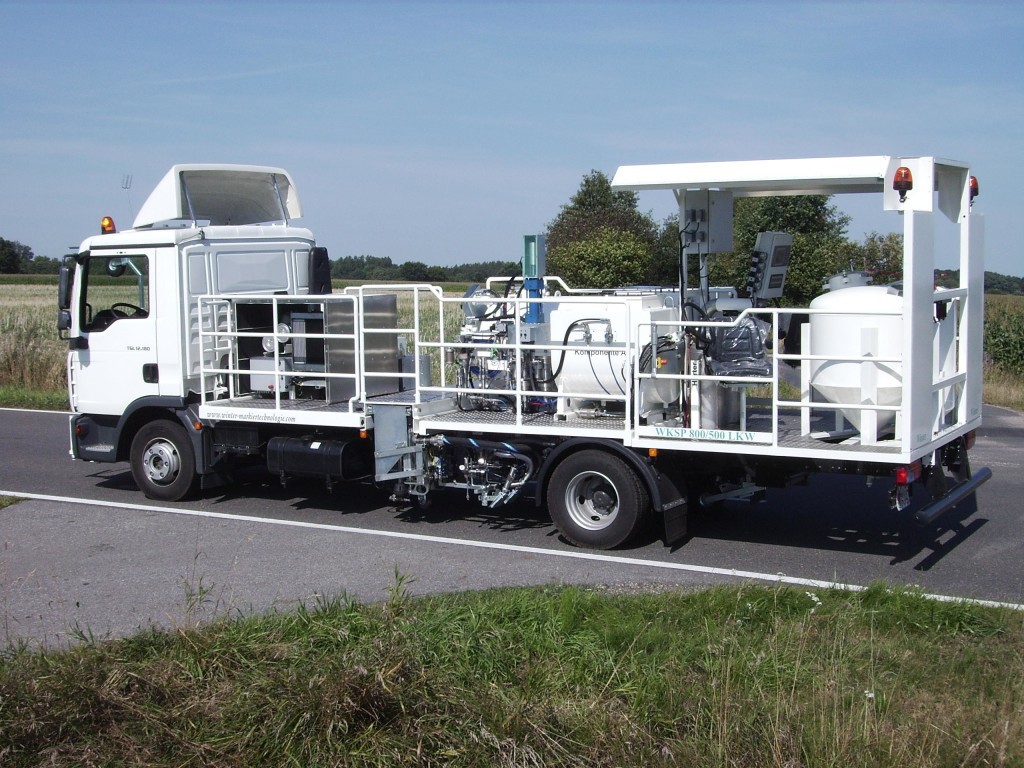

Road marking truck
| Machine type | Road marking truck WKSP 800/500 |
| Truck type | MAN TGL 12.180 |
| Wheel base | 4500 mm |
| Line guide | connected to stearing, pneumatic lifting |
| Hydraulic powerstation | Kubota Diesel engine, 24 kW at 2000 rpm, watercooled |
| Compressor | Boge screw type compressor, mechanically driven by poly-v-belt, effective air supply 1150 l/min at 7 bar |
| Glass bead pressure tank | 1x 500 ltr., 1x 230 ltr. |
| Equipment | highsolid- and waterbased paint and 2-component cold sprayplasik system |
| Paint container | 2x 400 ltr, pressureless, stainless steel |
| Rinsing fluid container | approx. 50 ltr, stainless steel |
| Container for liquid hardener | approx. 50 ltr, stainless steel |
| Twin paint pump system | two Airless pumps, each 180 ccm displaced volume, hydraulically driven, seperate injection of hardener |
| Spraying head | airless 2-component spraying head |
| Equipment | 2-component coldplastic for Agglomerat- and Spotflex marking |
| Paint pressure container | 540 ltr |
| Outrigger / marker units | right and left hand side, 600 mm hydraulic side access, pneumatic lifting, adjustable from operators section |
| Operators section | right and left, near outrigger, for operation of the machine, all necessary instruments are clearly arranged |
| Empty- / total weight | approx. 8050 kg / 11990 kg |
| Dimensions Length x width x height | approx. 8,80 m x 2,30 m x 2,85 m (without wind deflector) |
Right of technical modifications reserved |
State of art: 01.11.2014_en |
