WKSP 850 (98:2)
Art.-Nr. 11-05

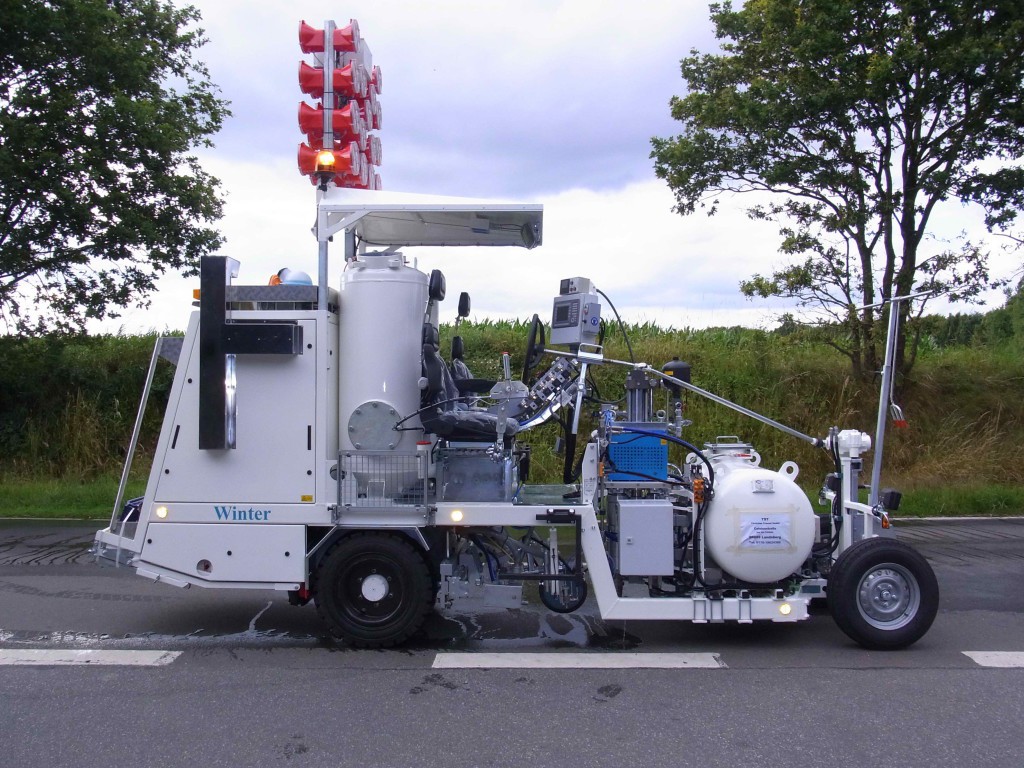

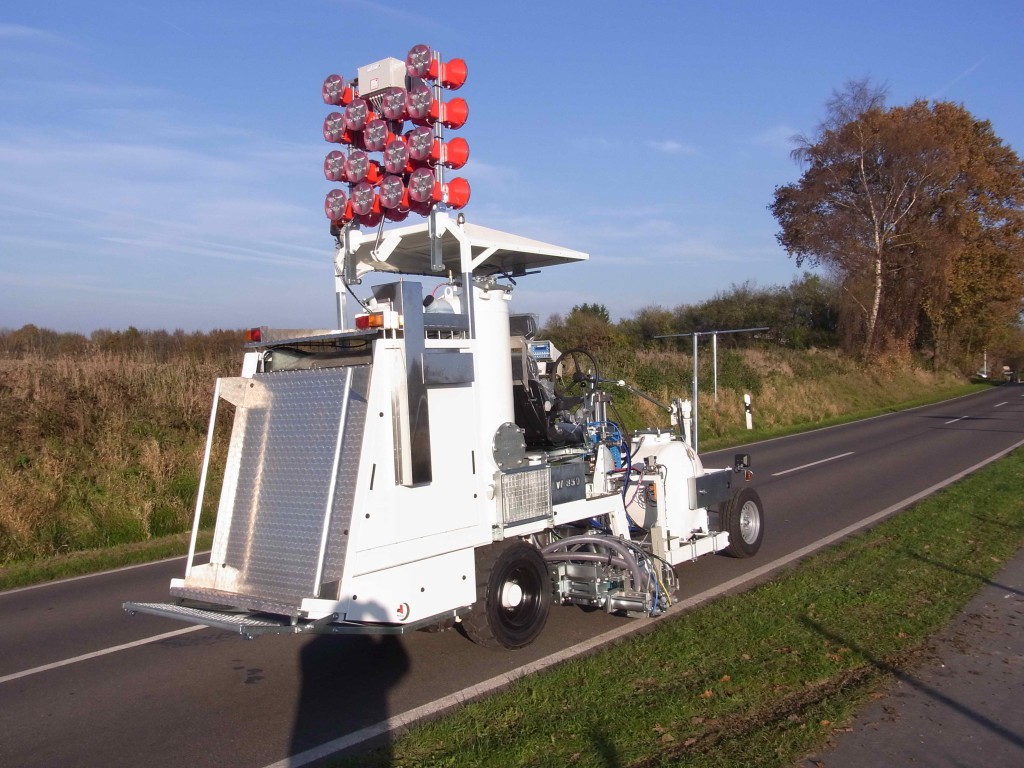

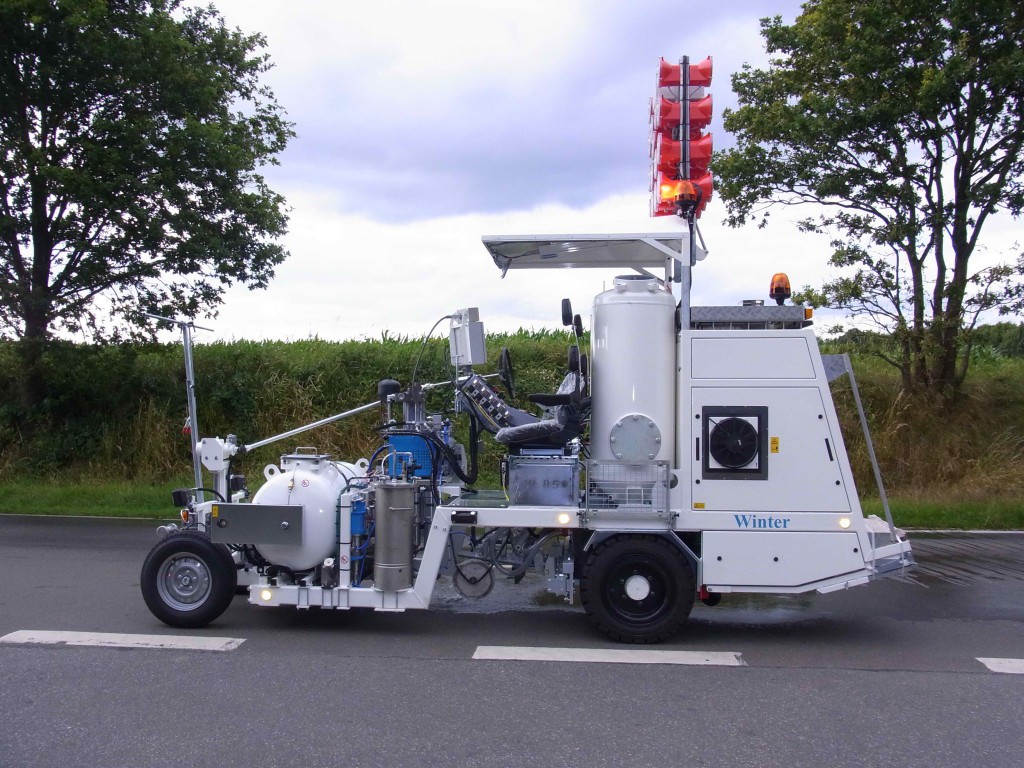

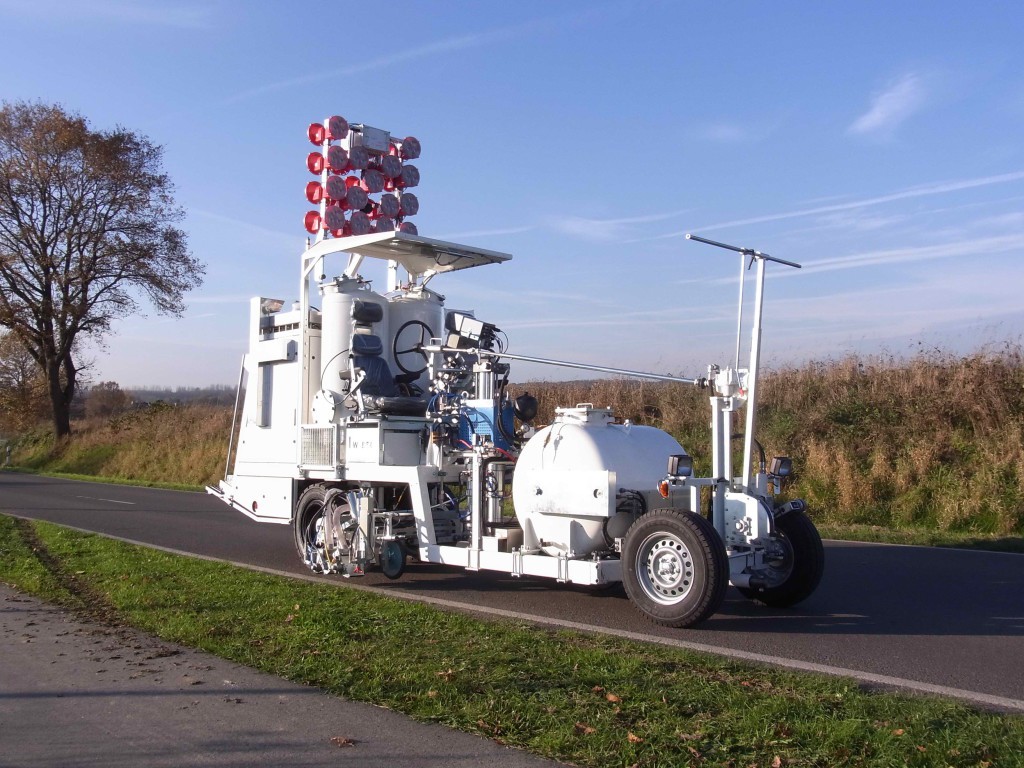

Road marking machine for cold spray plastic
| Machine Type | Road marking machine WKSP 850 (98:2) |
| Engine | Kubota V3307, 3331 ccm, 70 HP (51 kW), at 2000 r/min |
| Fuel | diesel, capacity 100 liter |
| Electrical system | 12 V, battery 100 Ah |
| Steering | strong standard mechanical steering, on request hydraulic assisted steering / hydraulic |
| Drive / brake system | hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake, on request 2-stage-drive |
| Wheels | front: 185 R 14 – 5-hole-rim / rear: 225 R 15 – 6-hole-rim |
| Compressor | screw type compressor, hydraulically driven, driving speed adjustable, air supply 600 up to1850 l/min |
| Operating air pressure | 7 bar self-adjusting, safety valve 8,5 bar |
| Paint pressure tank | 850 ltr., with agitator, other container capacities on request |

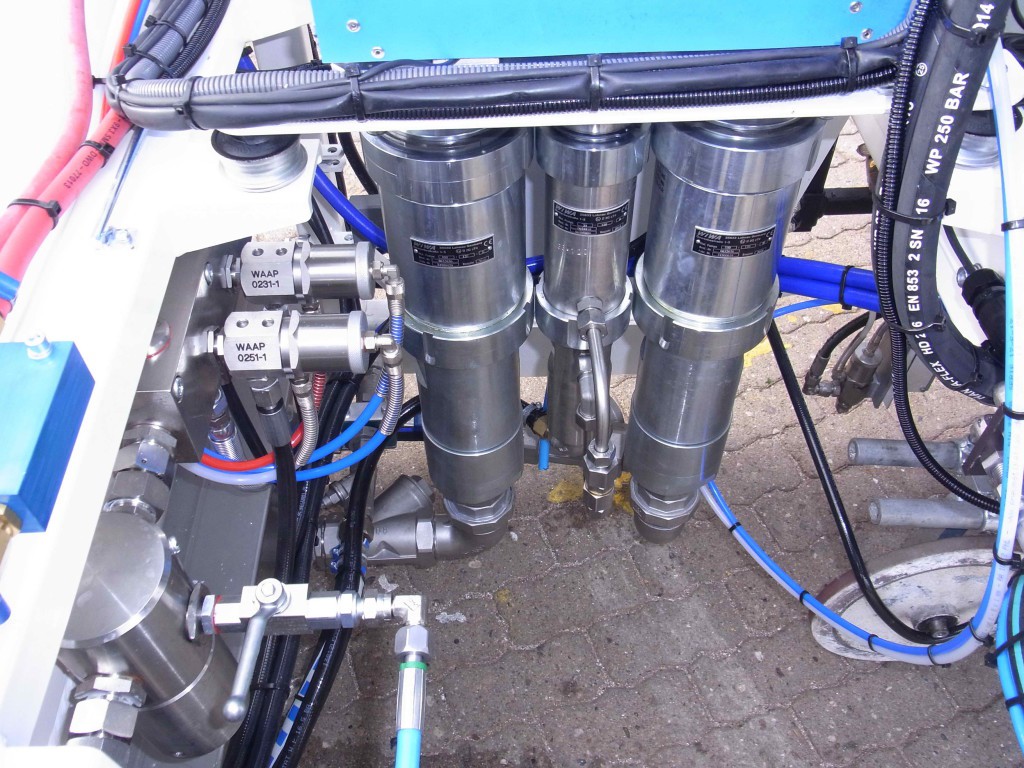

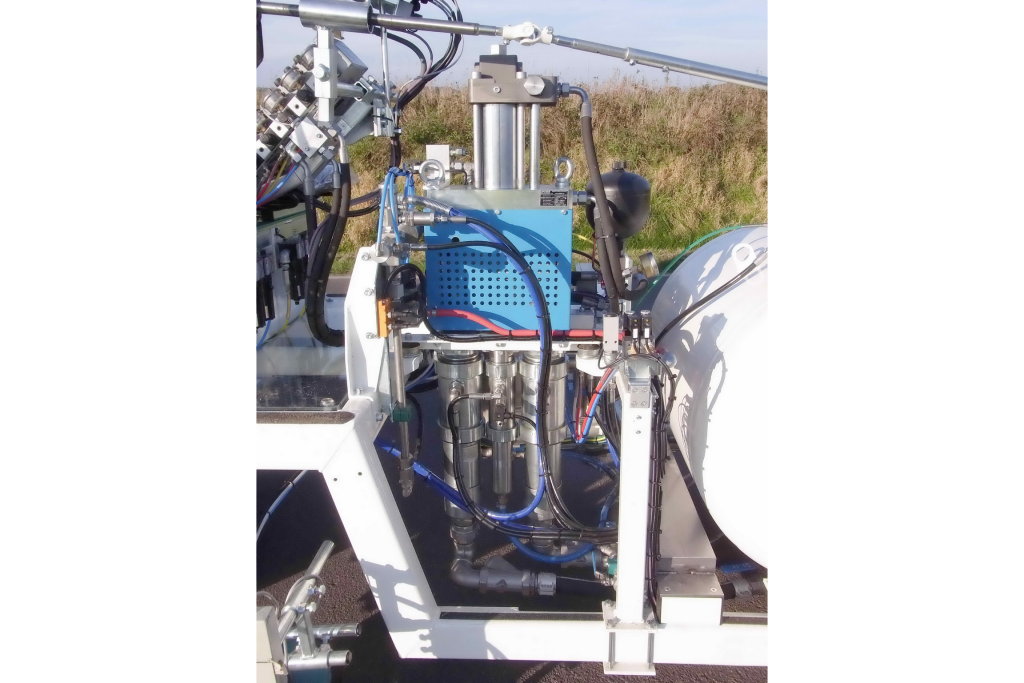

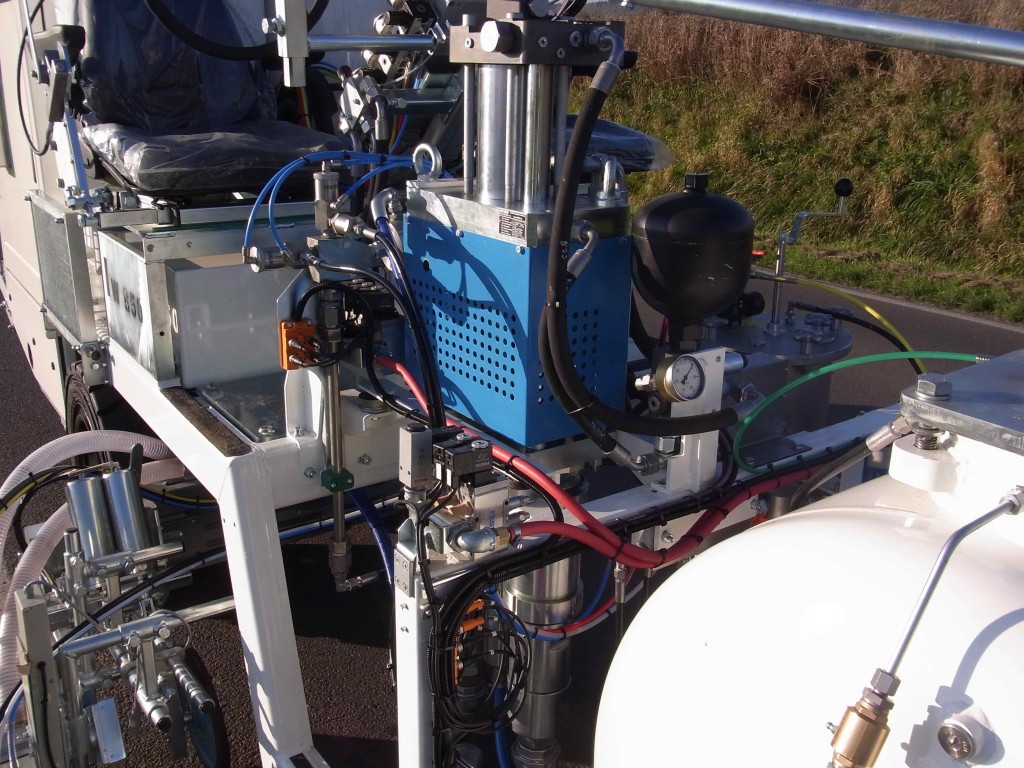

| Paint pump | Airless doublepump, 22 ltr/min, mixture ratio 98 : 2 |
| Glass bead pressure container | 2x 230 ltr., with water pre separator, on request filling sieve / filling level monitor |
| Marker unit | units discless |
| Glass bead equipment | on request, metering bead dispenser up to 30 cm |
| Empty- / total weight | approx. 3500 kg / 5500 kg |
| Dimensions Length x width x height | approx. 5,50 m x 1,20 m x 2,60 m (without equipment) |
Right of technical modifications reserved |
State of art: 01.11.2014_en |
