WP 25/48
Art.-Nr. 04-02

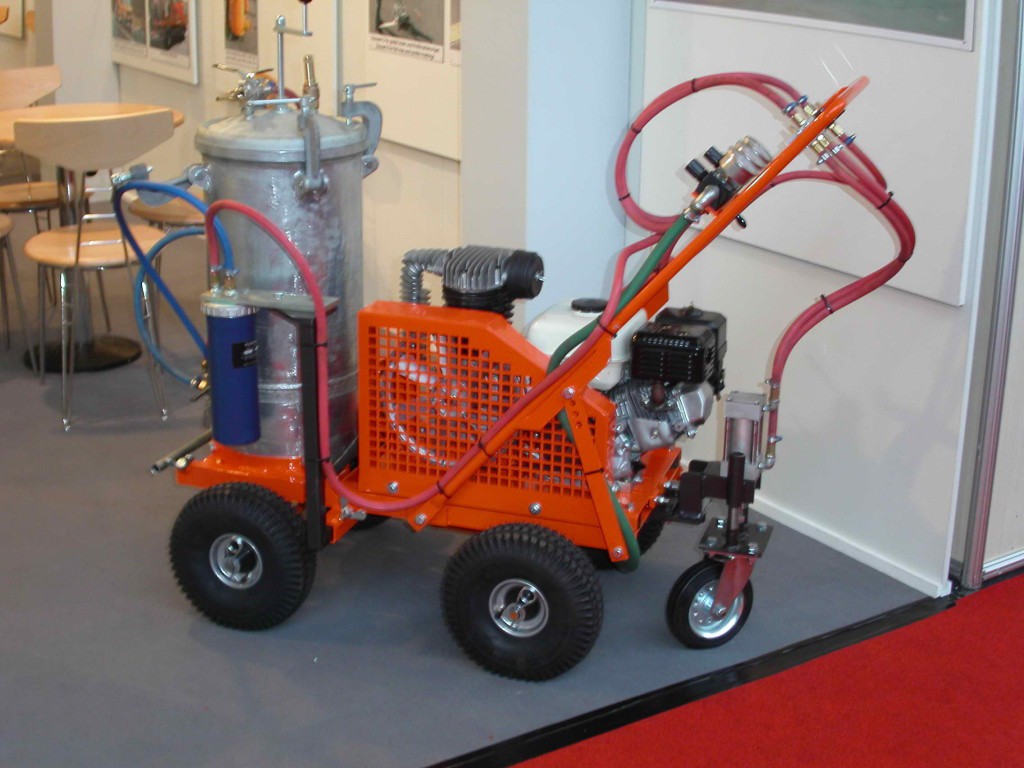

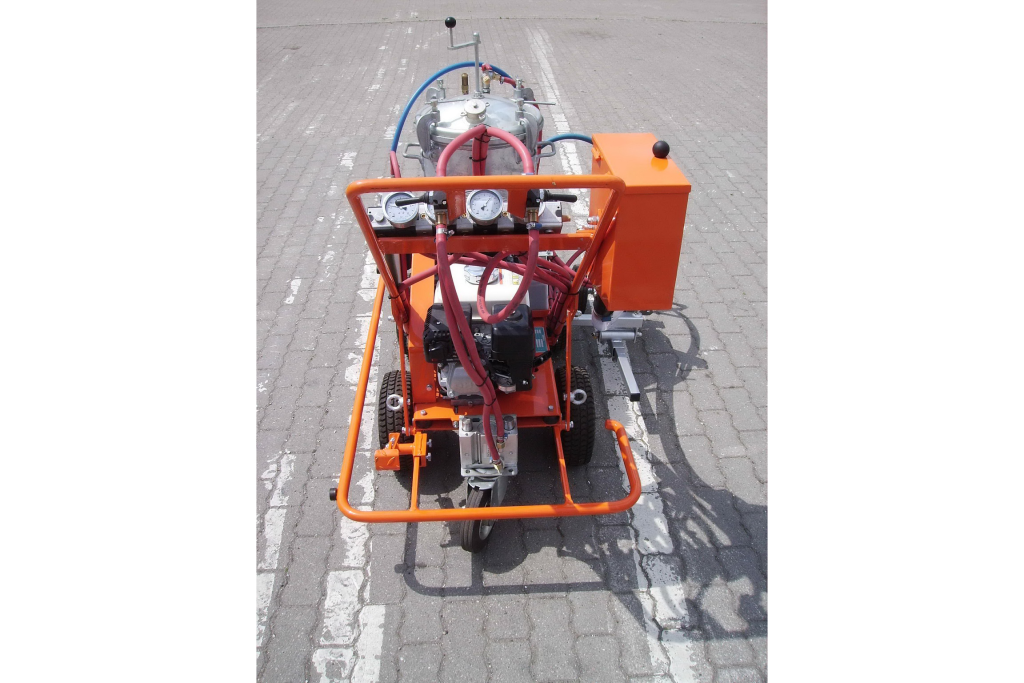

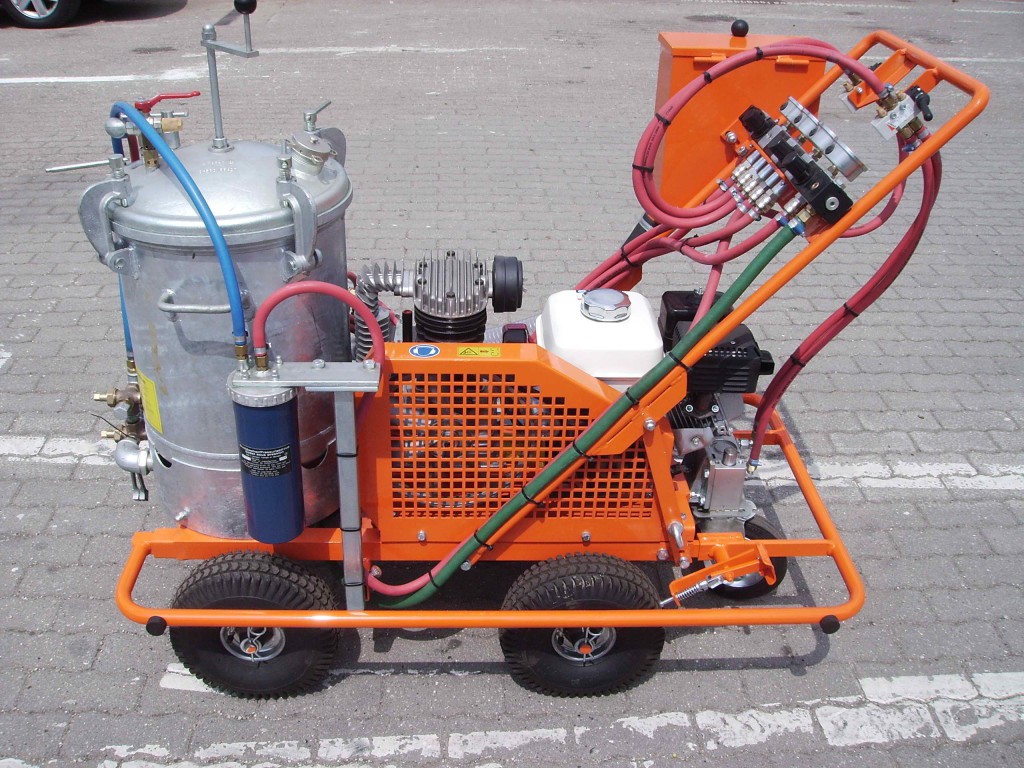

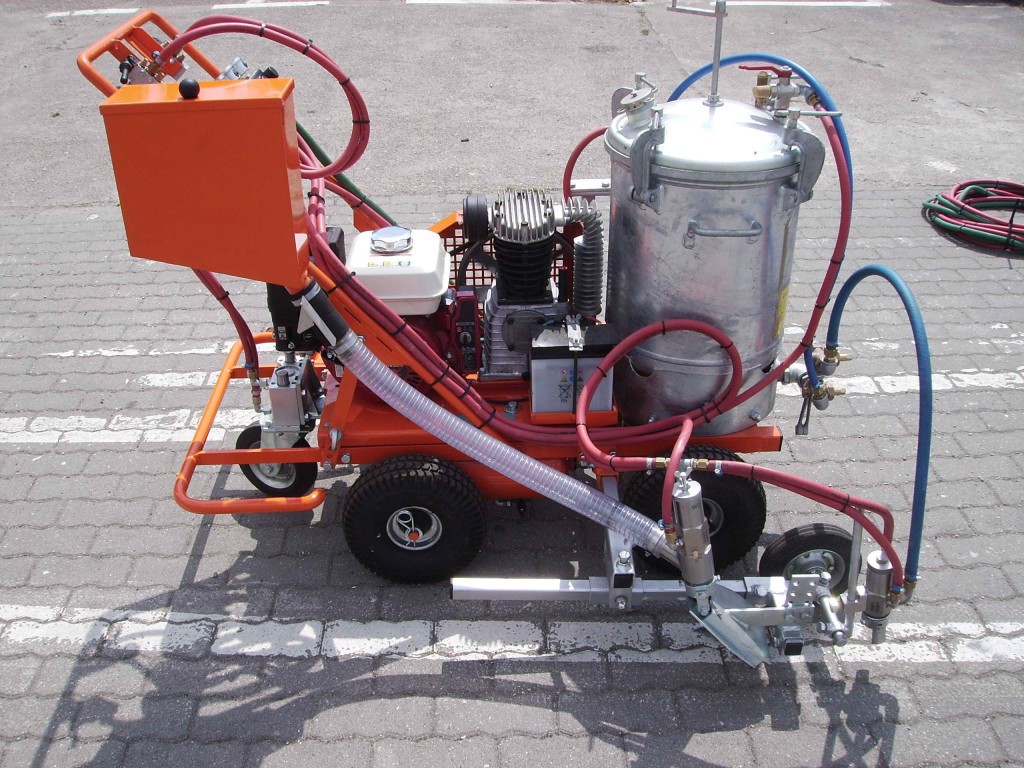

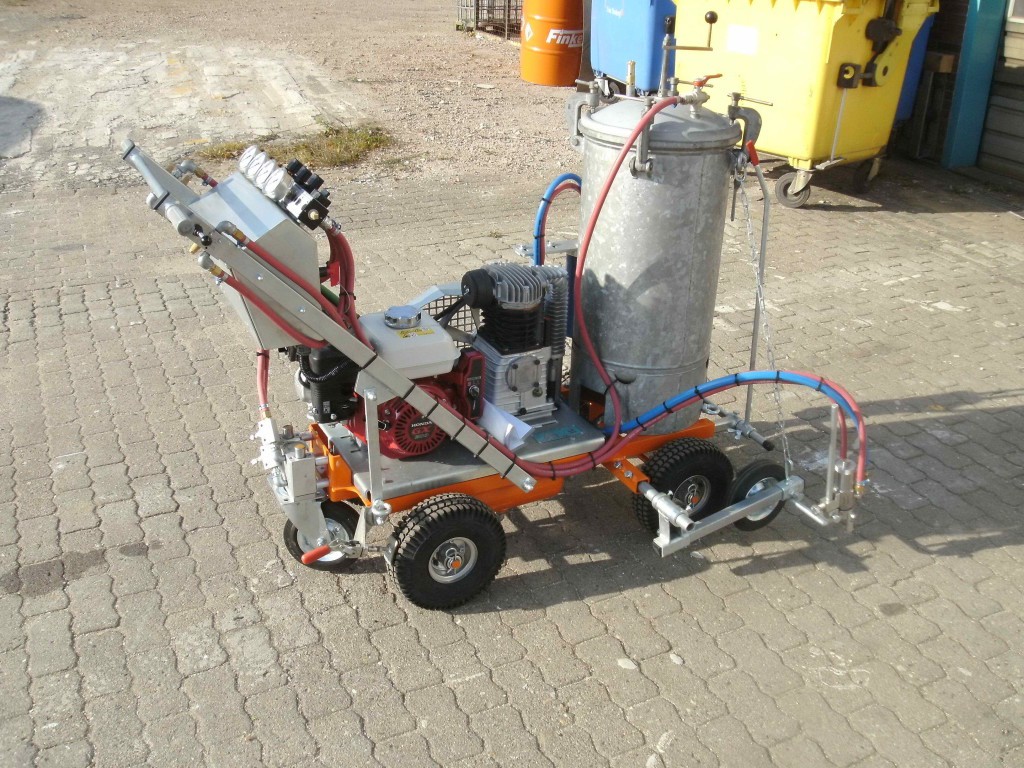

Hand-guided road marking machine
| Machine Type | Hand-guided road marking machine WP 25/48 |
| Engine | Honda-GX 160, 5,5 hp (4kW) |
| Fuel | gasoline |
| Electrical system | 12 V, on request battery 16 Ah, e-start |

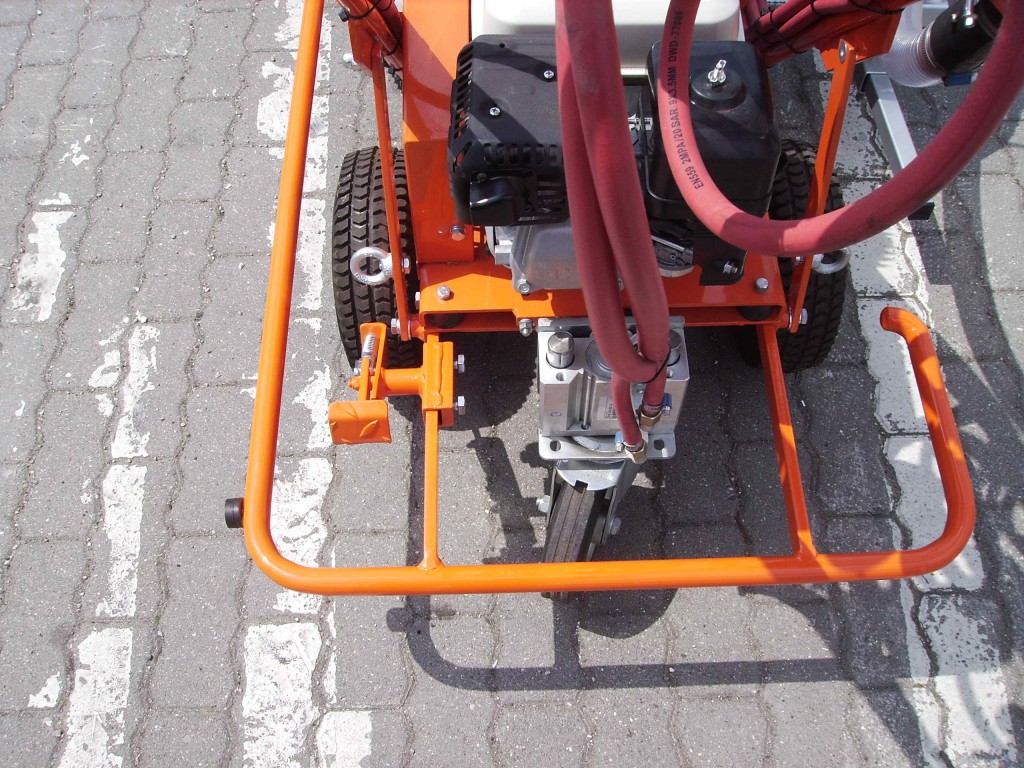

| Steering | swivel wheel, pneumatically switchable by cylinder |
| Wheels | 4 pneumatic wheels, d=300 mm, 4 PR |
| Compressor | 2-cylinder, effective air supply 360 ltr./min |

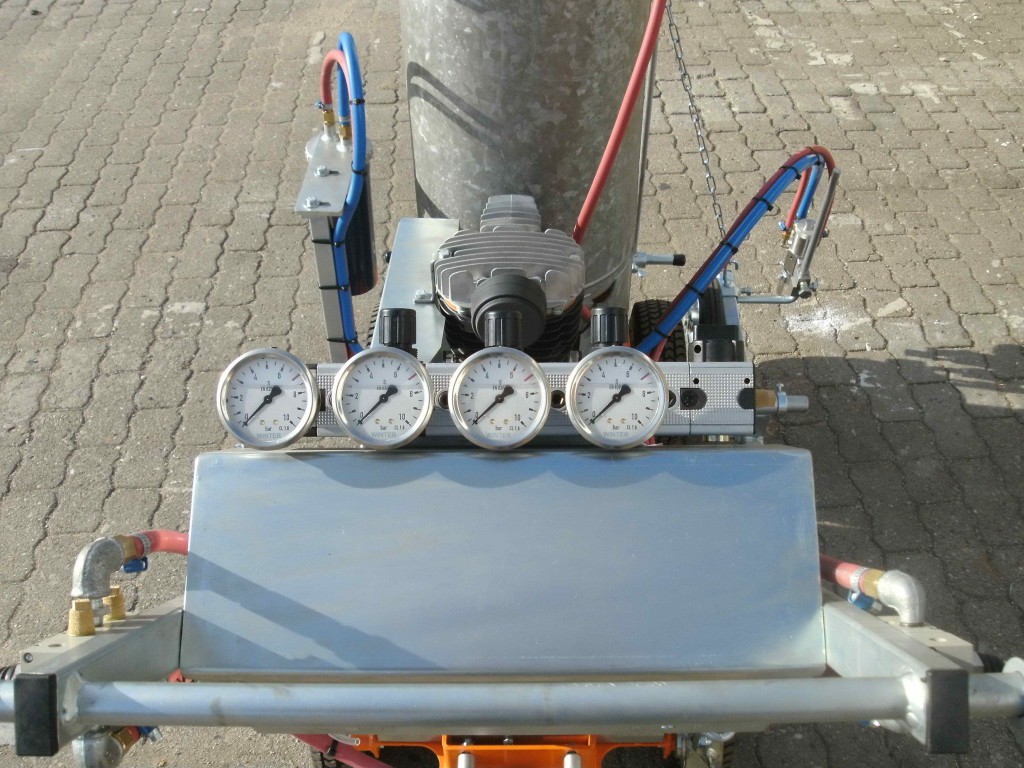

| Operating air pressure | 6 bar, silenced safety valve |
| Paint pressure tank | 24 litres, on request 48 or 65 litres, with agitator |

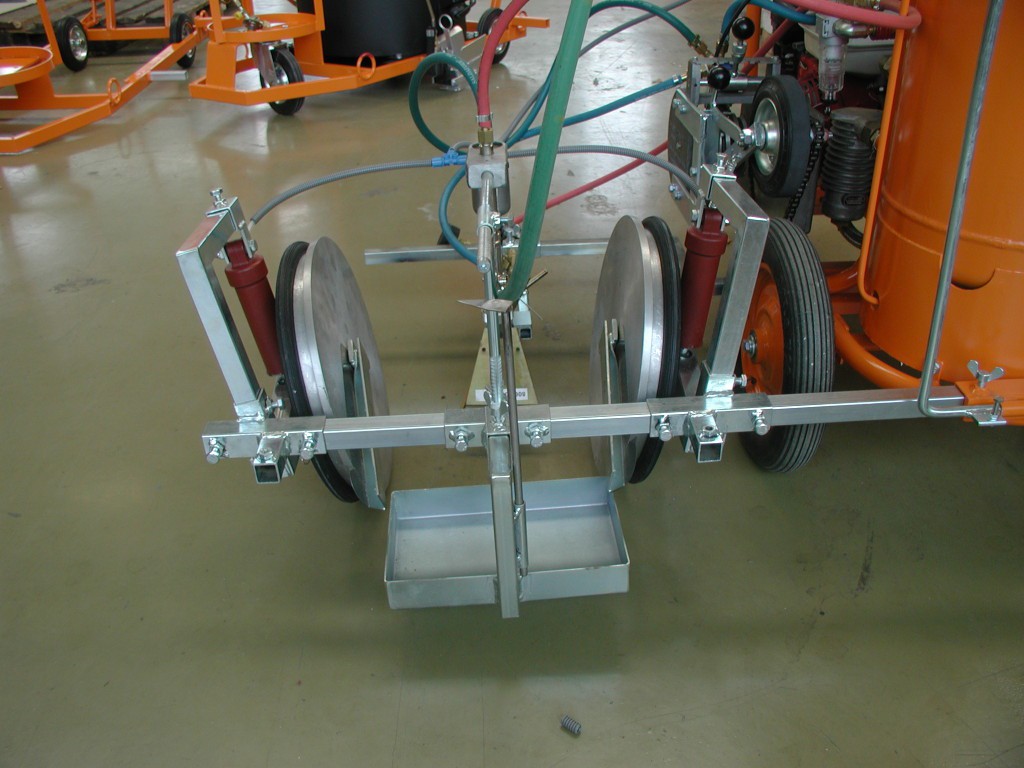

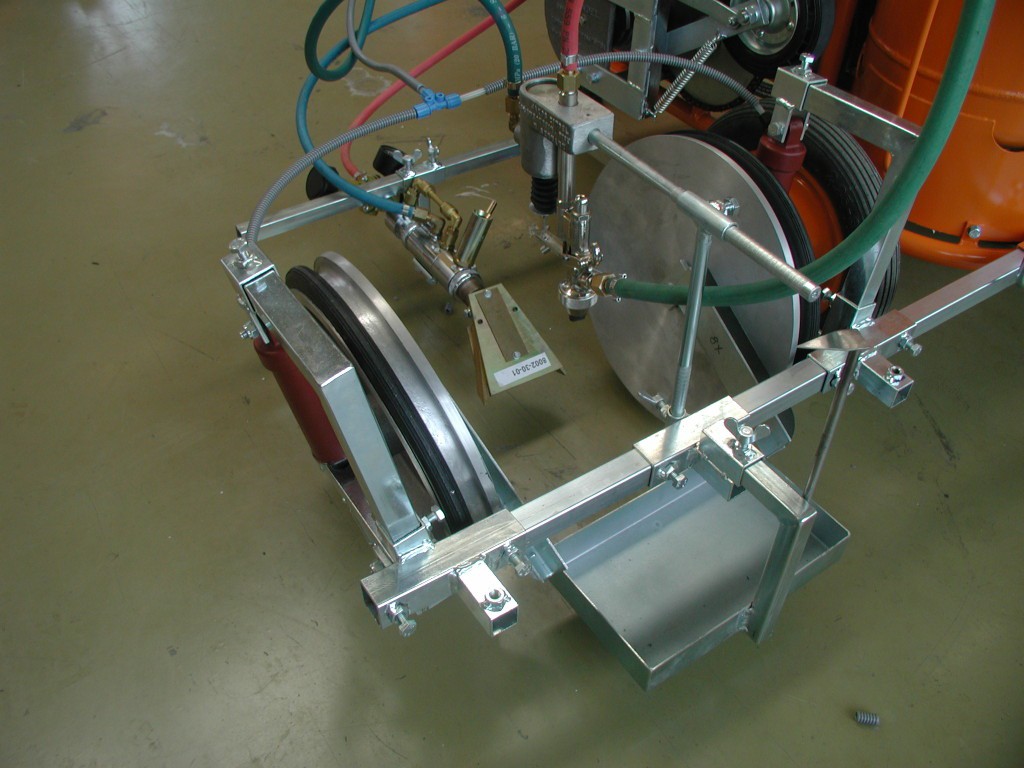

| Marker unit | discless marker unit as standard up to 15 cm line width, on request with rolling discs marker unit up to 30 cm line width |
| Additional equipment | hand held spray gun with 6 or 10m hosing, glass bead equipment with 11 ltr. bead tank, bead gun 10-30 cm dispensing width |
| Empty weight | approx. 120 kg |
| Dimensions Length x width x height | approx. 1,70 m x 1,00m x 1,00 m |
Right of technical modifications reserved |
State of art: 01.11.2014_en |
