WP 3000 Airless
Art.-Nr. 01-01

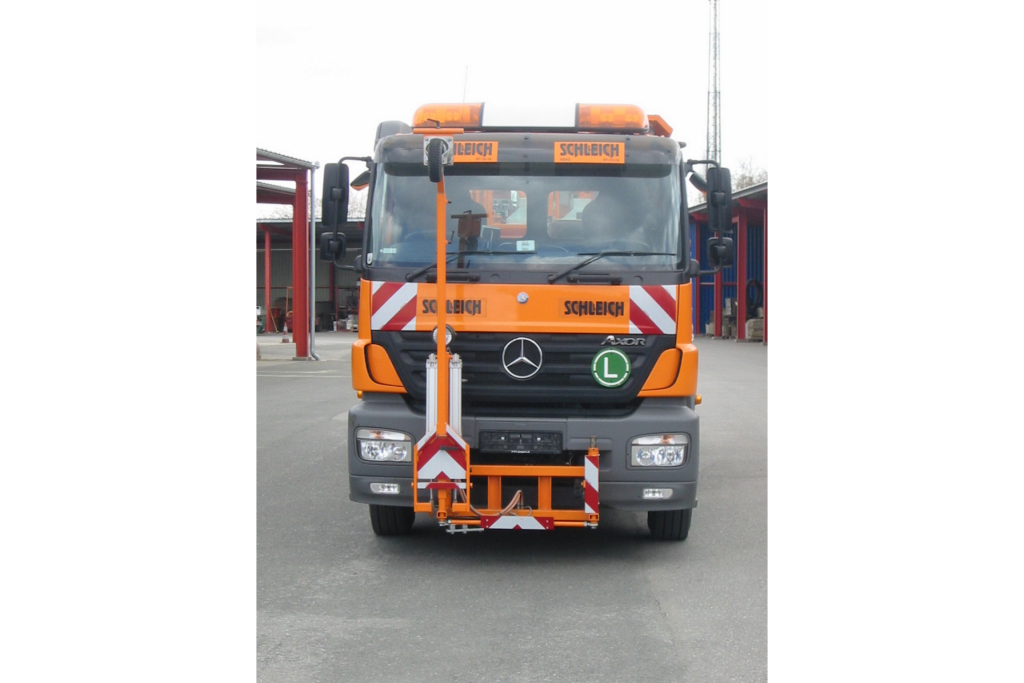

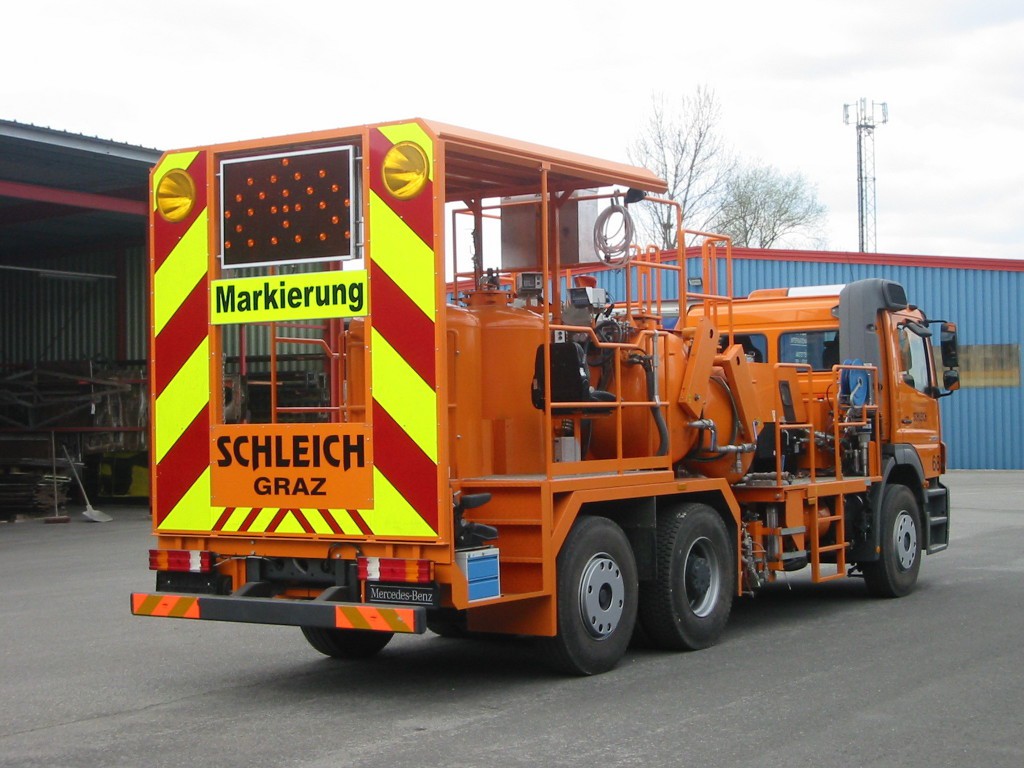

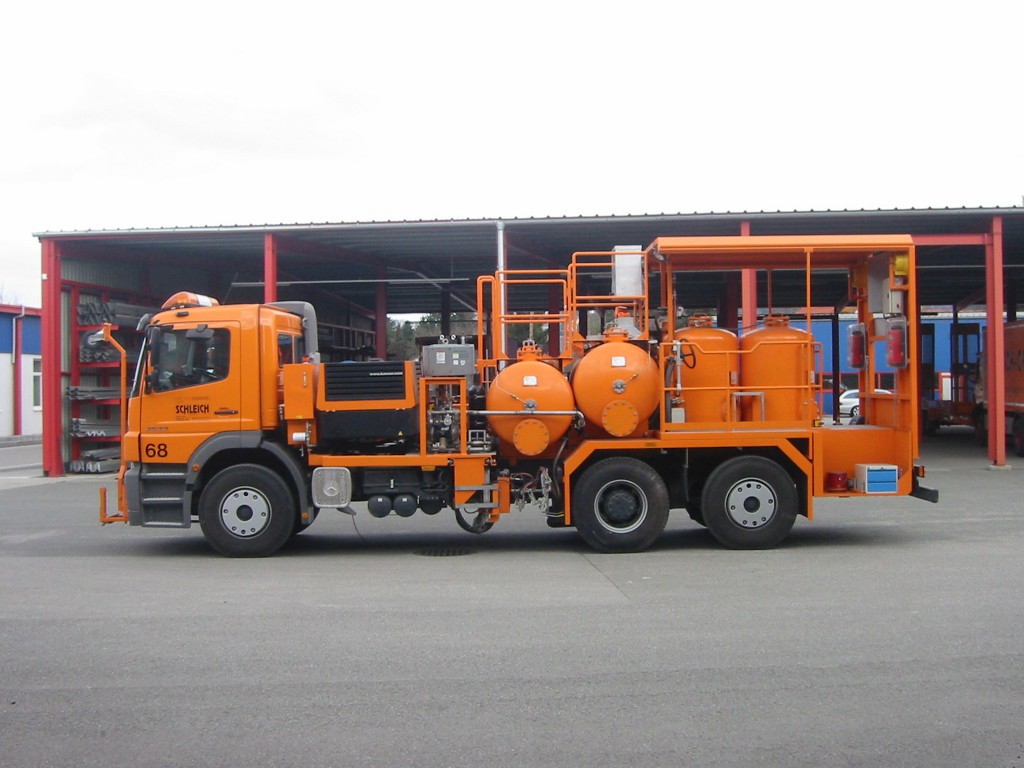

Road marking truck
| Machine type | Road marking truck WP 3000 Airless |
| Truck type | Mercedes Benz Axor 2533 L4x2 |
| Wheel base | 4200 mm, second rear axle hydraulically controlled |
| Line guide | connected to stearing, pneumatic lifting |

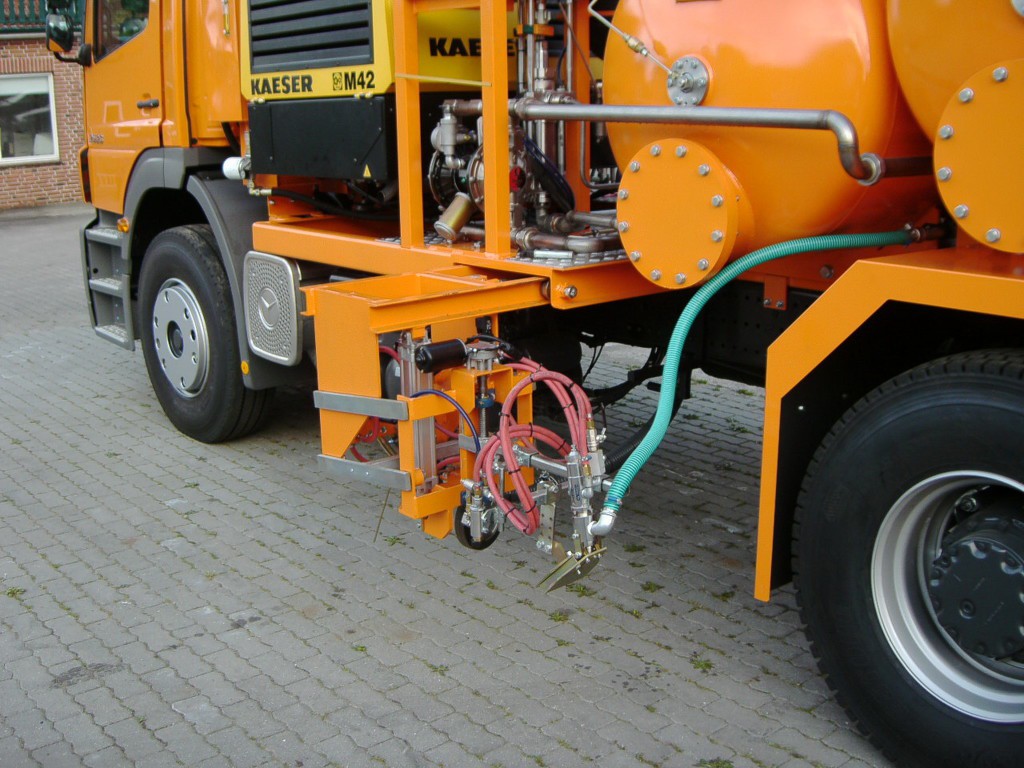

| Compressor | Kaeser Typ M42, effective air supply 4,25 m³/min at 7 bar |
| Paint pressure tank | 2x 1500 ltr., with hydraulically driven agitator, side entrance 300 mm, for easy cleaning, paint sieve with 750 cm² sieve area |
| Glass bead pressure tank | 2x 850 ltr., upright mounted, side entrance 240 mm , for easy cleaning |
| Cleaning system | 100 ltr. filling capacity, high pressure cleaning liquid pump |
| Paint pump | Airless 35 ltr./min, pneumatically operated, piston-type accumulator with pulsation damper |

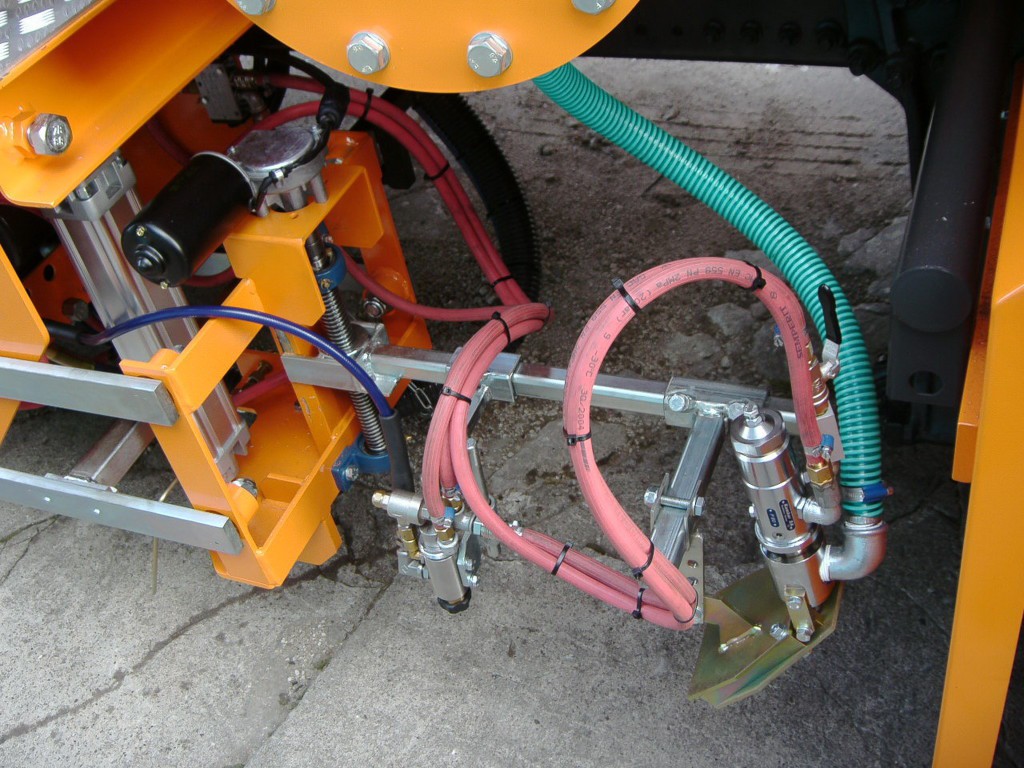

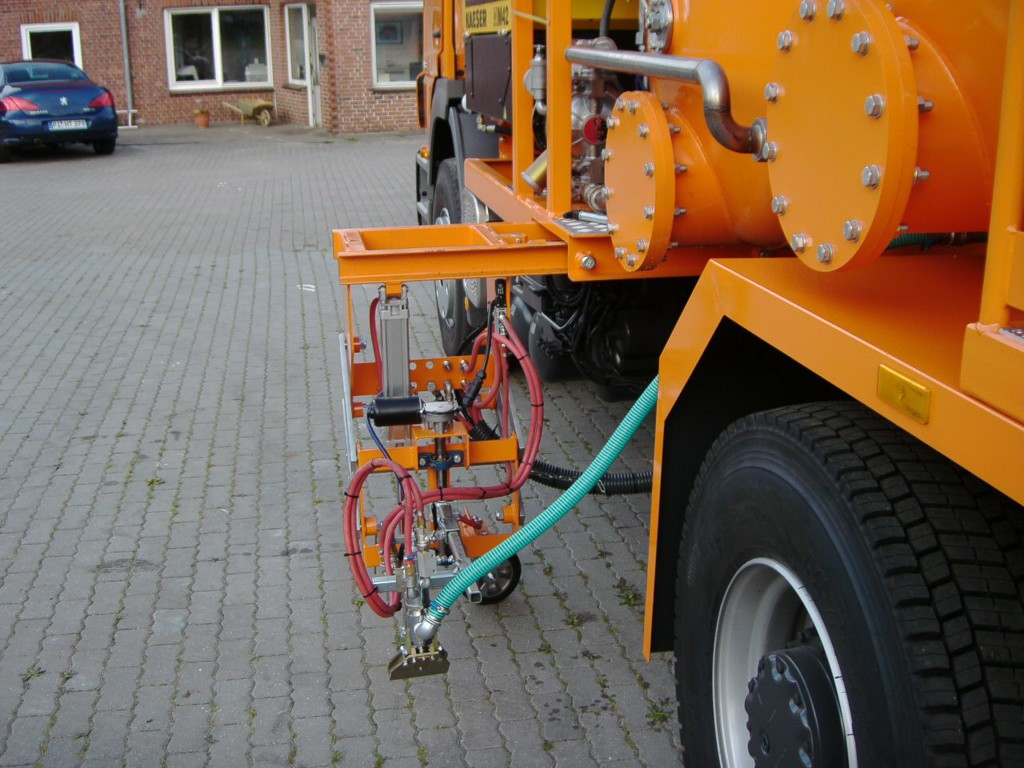

| Outrigger / marker units | right and left hand side, 600 mm hydraulic side access, pneumatic lifting |
| Operators section | right and left, near outrigger, panel with all necessary instruments |
| Paint spray guns | on request |
| Glass bead equipment | on request |
| Additional equipment | Paint filling pump 300 ltr./min |
| Empty- / total weight | approx. 17200 kg / 25000 kg |
| Dimensions Length x width x height | approx. 8,95 m x 2,34 m x 3,50 m |
Right of technical modifications reserved |
State of art: 01.11.2014_en |
