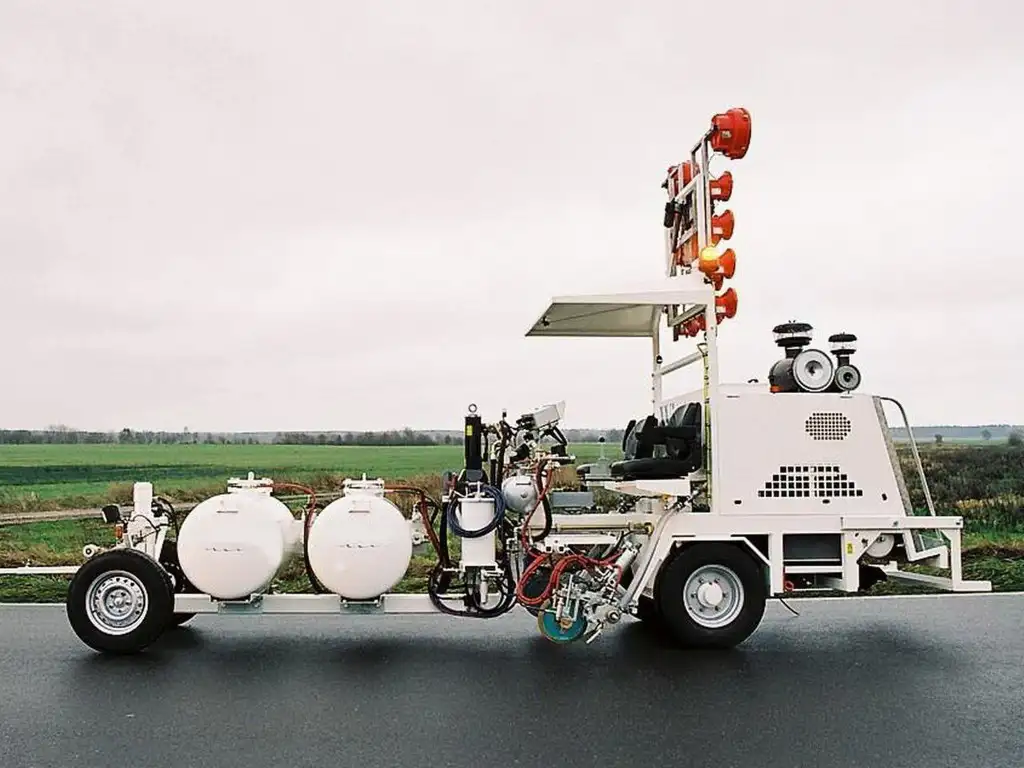

WP 1000 Airless II
Art.-Nr. 02-02
Road marking machine for paint
| Machine Type | Road marking machine WP 1000 Airless |
| Engine | Kubota V3800 DI-T, 3800 ccm, 100 HP (74 kW), at 2600 r/min |
| Fuel | diesel, capacity 75 liter |
| Electrical system | 12 V, battery 90 Ah |
| Steering | strong standard mechanical steering, on request hydraulic steering |
| Drive / brake system | hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake |
| Wheels | front: 185 R 14 – 5-hole-rim / rear: 215 R 14 – 6-hole-rim |
| Compressor | 3-cylinder Boge compressor Typ SK 36, effective air supply 1465 l/min, mechanically driven by poly-v-belt |
| Operating air pressure | 7 bar, silenced safety valve |
| Paint pressure tank | front: 410 ltr. / rear: 410 ltr., with agitator, other container capacities on request |
| Paint pump | Airless type Graco 26 ltr./min., piston-type accumulator with pulsation damper |
| Marker unit | on request, two units discless |
| Additional equipment | on request, hand held spray gun with hose roller |
| Glass bead equipment | on request, metering bead dispenser up to 300 mm |
| Empty- / total weight | approx. 2500 kg / 4800 kg |
| Dimensions Length x width x height | approx. 5,45 m x 1,40 m x 2,20 m (without equipment) |
Right of technical modifications reserved |
State of art: 01.11.2014_en |
