WPT 251 GTLR Kombi
Art.-Nr. 03-08

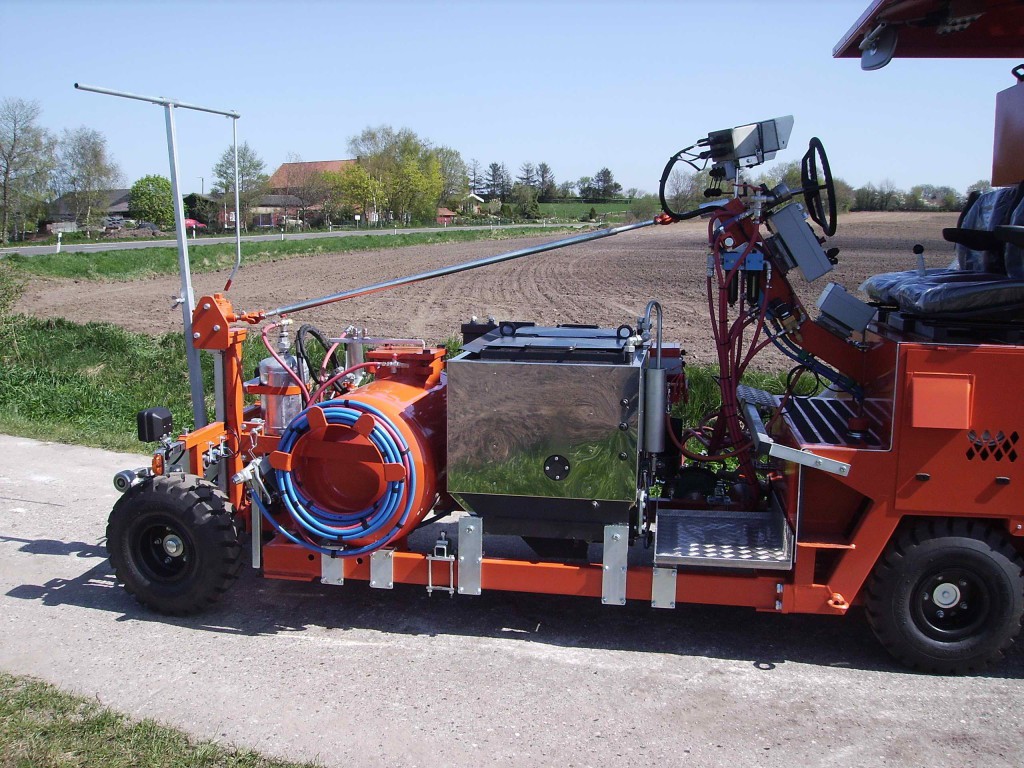

Road marking machine for paint and thermoplastic
| Machine Type | Road marking machine WPT 251 GTLR |
| Engine | Kubota V1505T, 40,8 HP (30 kW) |
| Fuel | diesel, capacity 55 liter |
| Electrical system | 12 V, battery 66 Ah |
| Steering | strong standard mechanical steering, on request hydraulic assisted steering / hydraulic steering |
| Drive / brake system | hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake |
| Wheels | front: 21×8 – 9, 5 hole-rim / rear: 21×8 – 9, 5 hole-rim |
| Compressor | Boge screw type compressor, mechanically driven by poly-v-belt, effective air supply 1150 l/min |
| Operating air pressure | 7 bar, silenced safety valve |
| Paint pressure tank | 240 ltr., with hydraulic driven agitator |
| Marker unit | on request, two units discless |
| Additional equipment | on request, hand held spray gun |
| Glass bead equipment | on request, metering bead dispenser up to 30 cm |
| Thermoplastic container | 220 ltr., with hydraulic driven agitator, other container capacities on request |
| Thermal oil heating | gas with thermostatic adjustment |
| Marker unit | screed box |
| Additional equipment | on request, profiles- or structure markings |
| Glass bead equipment | on request, metering bead dispenser up to 30 cm |
| Empty- / total weight | approx. 1700 kg / 2600 kg |
| Dimensions Length x width x height | approx. 4,40 m x 1,15 m x 1,80 m (without equipment) |
Right of technical modifications reserved |
State of art: 01.11.2014_en |
