TKO 2x 1200
Art.-Nr. 08-01

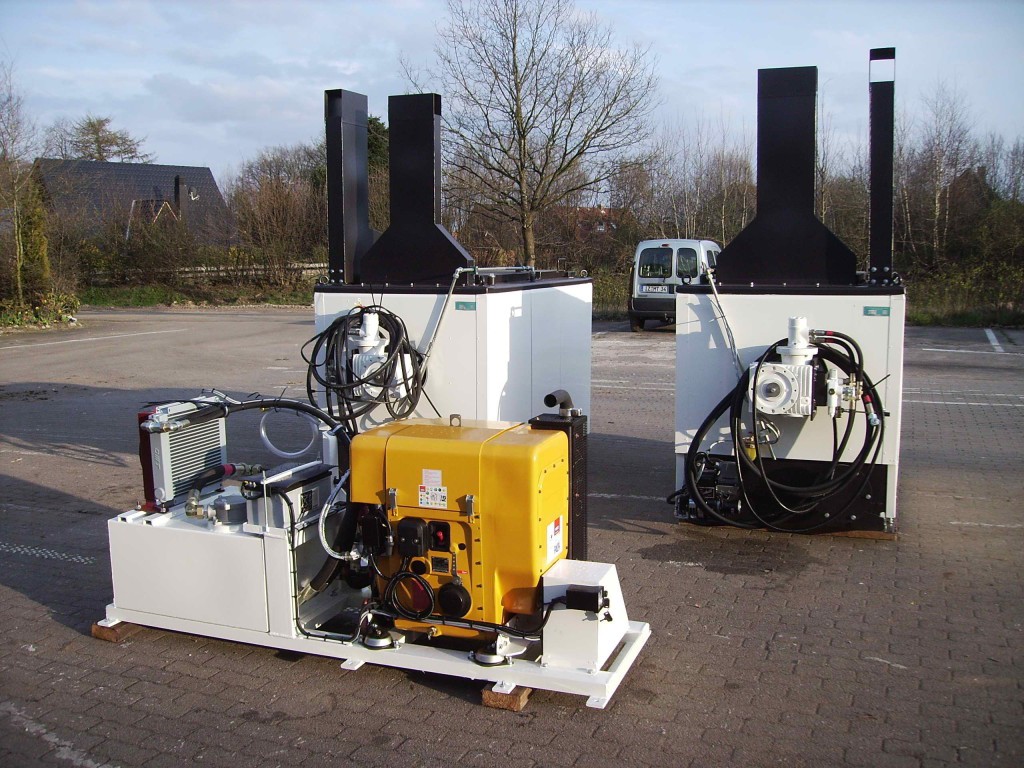

Thermoplastic preheater, twin version with hydraulic power station
| Machine Type | Thermoplastic preheater, twin version TKO 2x 1200 |
| Preheater, twin version | |
| Heating | indirect by thermal oil |
| Agitator | horizontal shaft made of wear-resistant special steel |
| General | boiler suitable for oil burner as well as propane gas heating, equipped with safety device to avoid material overheating |
| Thermoplastic capacity | max. 2x 1200 ltr. equal 2x 2400 kg |
| Empty- / total weight | approx. 5000 kg / 9800 kg |
| Dimensions Length x width x height | approx. 2,60 m x 2,40 m x 2,45 m |
| Hydraulic power station | |
| Hydraulic power station WHA 100 | silenced Hatz diesel engine type 2L 41C 28,4 HP (20,9 kW) at 2000 r/min, with reinforced generator starter and battery 12V 100Ah |
| Total weight | approx. 650 kg |
| Dimensions Length x width x height | approx. 2,10 m x 0,7 m x 1,00 m |
Right of technical modifications reserved |
State of art: 01.11.2014_en |
