WTSE 800
Art.-Nr. 01-02

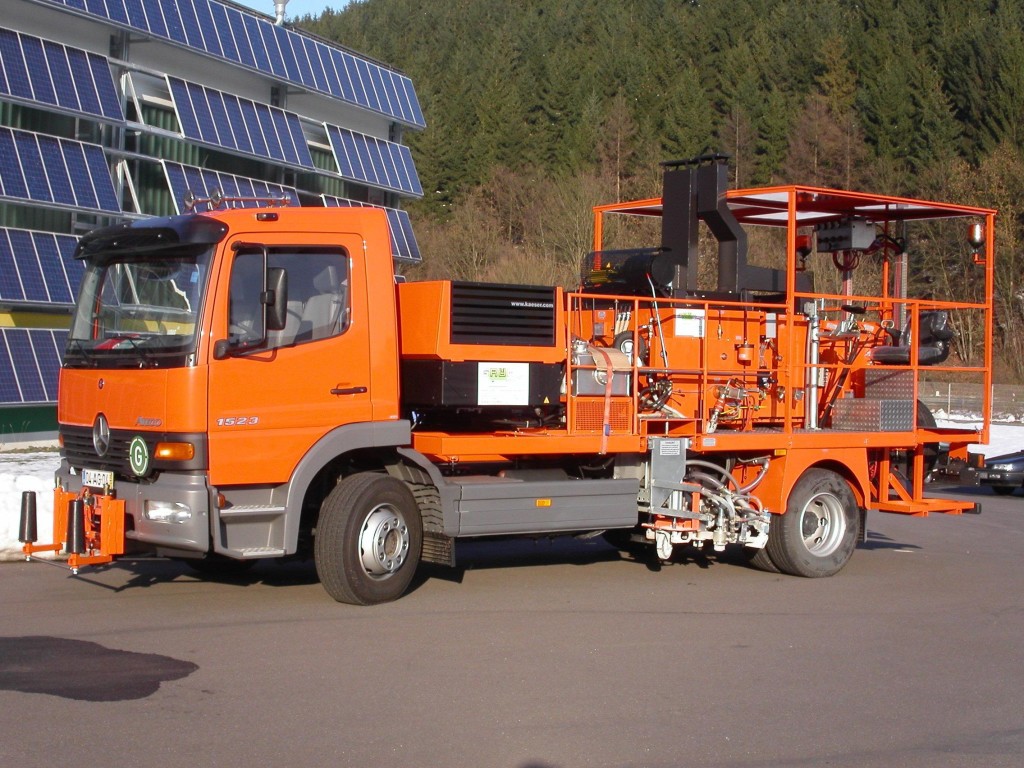

Road marking truck
| Machine type | Road marking truck WTSE 800 |
| Truck type | Mercedes Benz ATECO 1523 |
| Wheel base | 4160 mm |
| Line guide | connected to stearing, pneumatic lifting |
| Compressor | Kaeser Typ M42, effective air supply 4,25 m³/min at 7 bar |
| Thermoplastic pressure tank | 1x 500 ltr., 1x 300 ltr. |
| Thermal oil heating | on request gas or diesel |
| Glass bead pressure tank | 2x 120 ltr., upright mounted |
| Extruder | different flap sizes available |
| Additional equipment | quick cleaning system for extruder head |

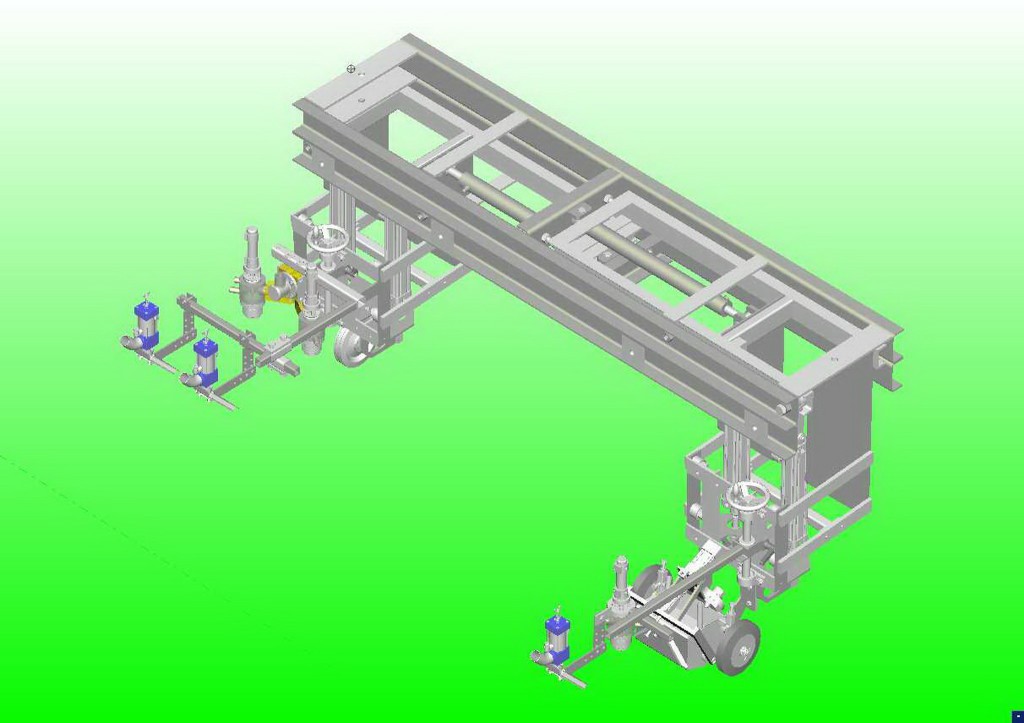

| Outrigger / marker units | right and left hand side, 600 mm hydraulic side access, pneumatic lifting |
| Operators section | right and left, near outrigger, panel with all necessary instruments |
| Spray guns | on request |
| Glass bead equipment | on request |
| Empty- / total weight | approx. 9630 kg / 15000 kg |
| Dimensions Length x width x height | approx. 8,90 m x 2,50 m x 3,30 m |
Right of technical modifications reserved |
State of art: 01.11.2014_en |
