WTS 251 GTLR
Art.-Nr. 03-07
Road marking machine for hot sprayplastic
Machine Type | Road marking machine WTS 251 GTLR |
Engine | Kubota V1505T, 40,8 HP (30 kW) |
Fuel | diesel, capacity 55 liter |
Electrical system | 12 V, battery 66 Ah |
Steering | strong standard mechanical steering, on request hydraulic assisted steering / hydraulic |
Drive / brake system | hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake |
Wheels | front: 21×8 – 9, 5 hole-rim / rear: 21×8 – 9, 5 hole-rim |
Compressor | Boge screw type compressor, mechanically driven by poly-v-belt, effective air supply 1150 l/min |
Operating air pressure | 7 bar, silenced safety valve |
Material pressure container | 360 ltr., with agitator, oil burner heating |
Atomizing air heating | innovative atomizing air heating integrated in thermal oil jacket of the container, 150°C – 175°C |

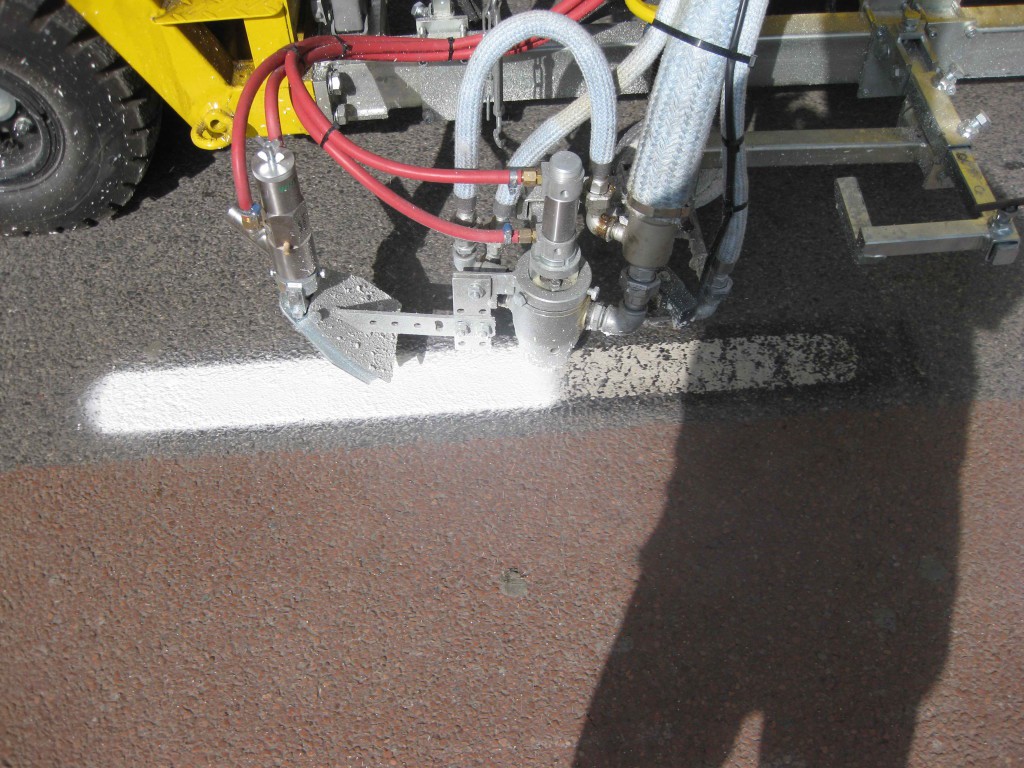

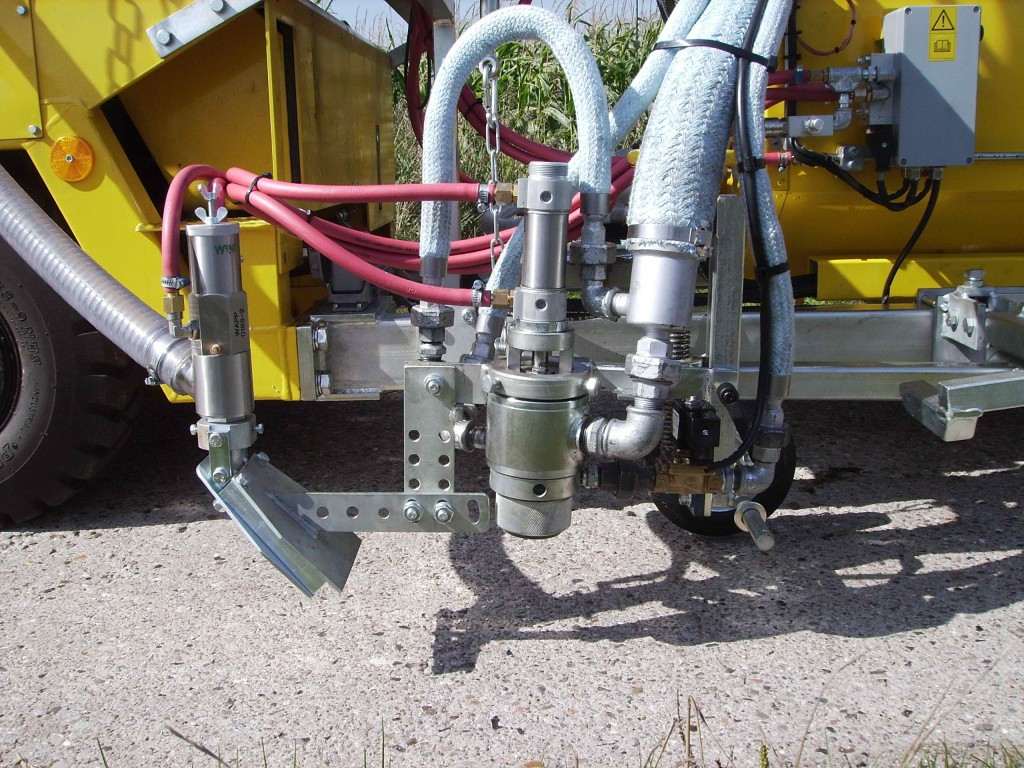

Marker unit | adjusting spindle with outrigger and wheel |
Glass bead equipment | glass bead gun |
Empty- / total weight | approx. 2100 kg / 3500 kg |
Dimensions Length x width x height | approx. 4,73 m x 1,15 m x 2,20 m (without equipment) |
Right of technical modifications reserved |
State of art: 01.11.2014_en |
