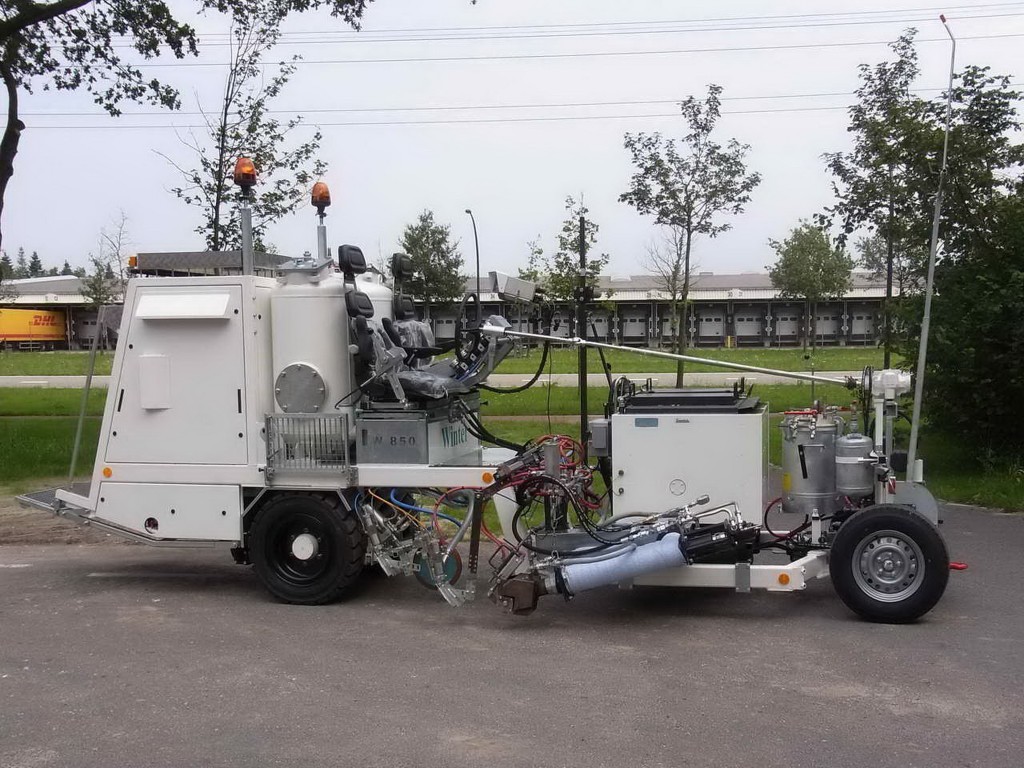

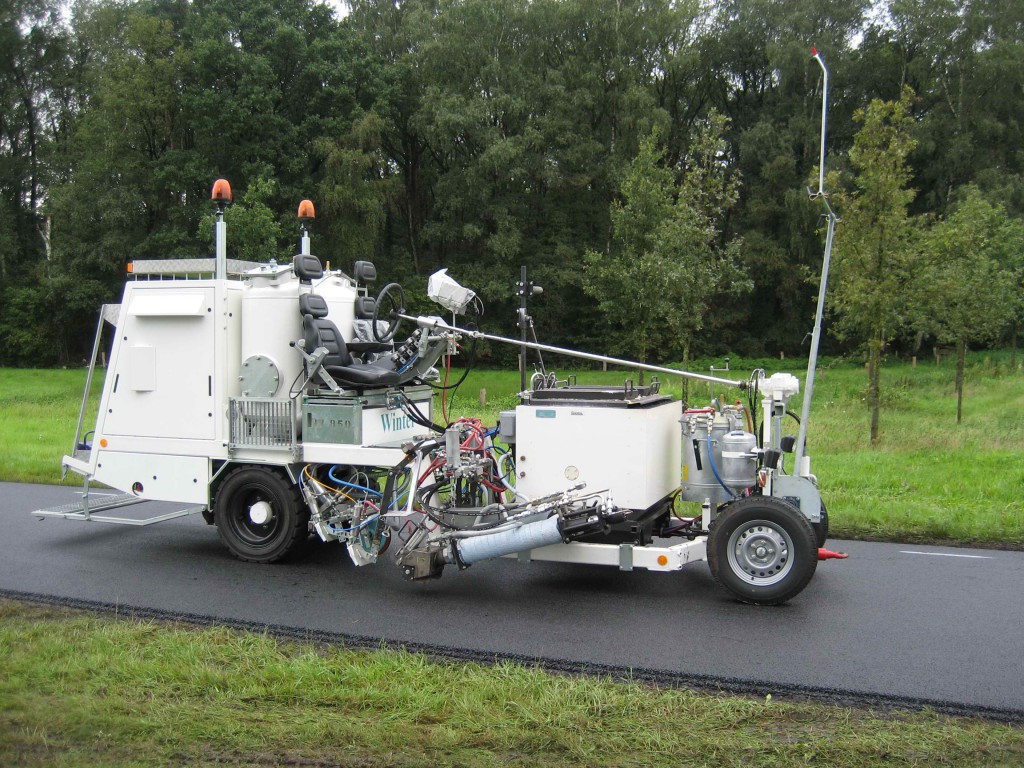

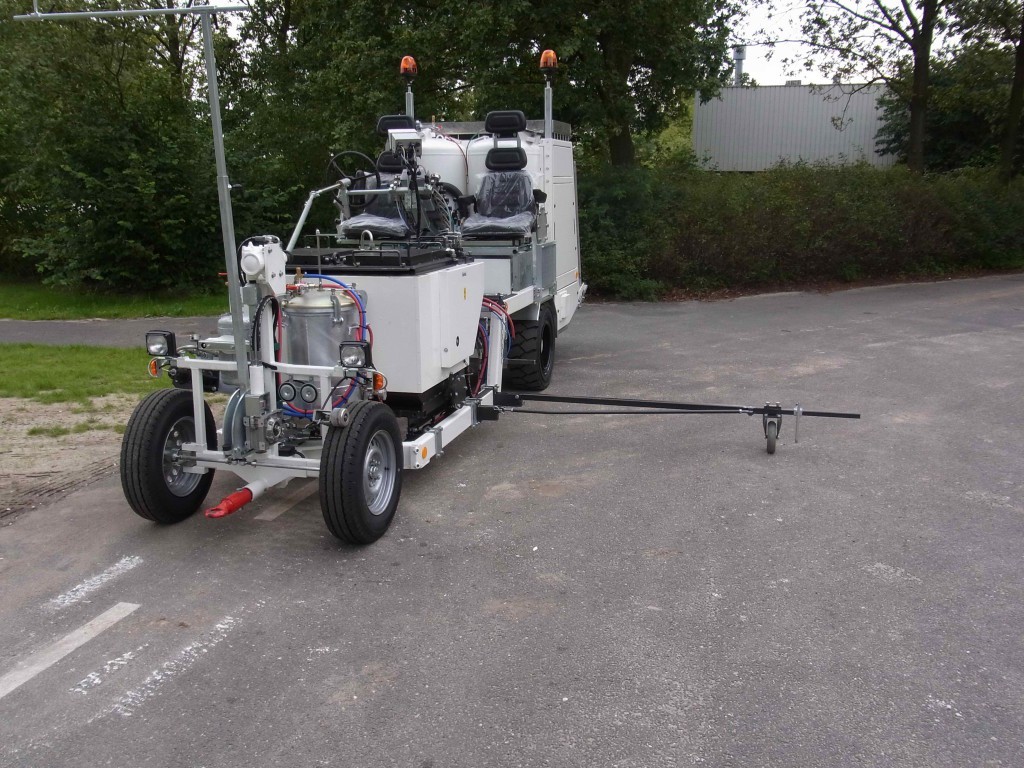

WTE 850
Road marking machine for thermoplastic with extruder
Machine Type | Road marking machine WTE 850 |
Engine | Kubota V3307, 3331 ccm, 70 HP (51 kW), at 2000 r/min |
Fuel | diesel, capacity 100 liter |
Electrical system | 12 V, battery 100 Ah |
Steering | strong standard mechanical steering, on request hydraulic assisted steering / hydraulic |
Drive / brake system | hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake, on request 2-stage-drive |
Wheels | front: 185 R 14 – 5-hole-rim / rear: 225 R 15 – 6-hole-rim |
Compressor | screw type compressor, hydraulically driven, air supply 1850 l/min |
Operating air pressure | 7 bar self-adjusting, safety valve 8,5 bar |
Thermoplastic container | 400 ltr., with agitator, other container capacities on request |
Thermal oil heating | on request gas / diesel |

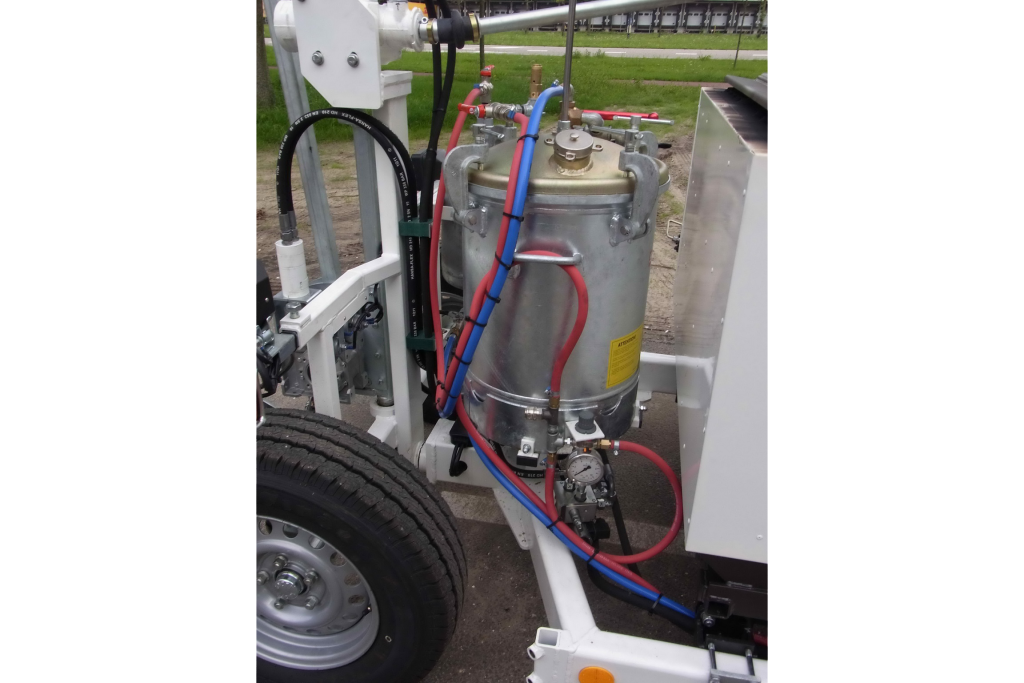

Glass bead pressure container | 2x 230 ltr., with water pre separator, on request filling sieve / filling level monitor |
Extruder | automatic thickness control, different flap sizes available |
Additional equipment | on request, quick cleaning system for extruder head |
Glass bead equipment | on request, metering bead dispenser up to 30 cm |
Empty- / total weight | approx. 3500 kg / 5500 kg |
Dimensions Length x width x height | approx. 5,50 m x 1,20 m x 2,60 m (without equipment) |
Right of technical modifications reserved |
State of art: 11.03.2015_en |
