WTS 351 GTLR
Art.-Nr. 12-02

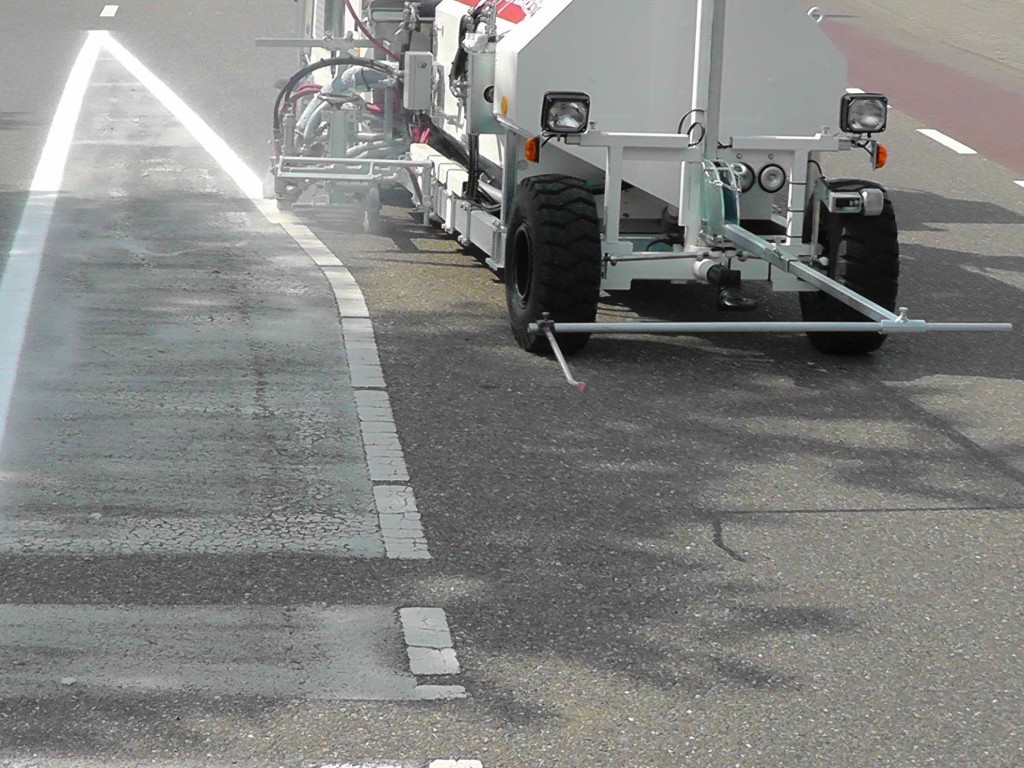

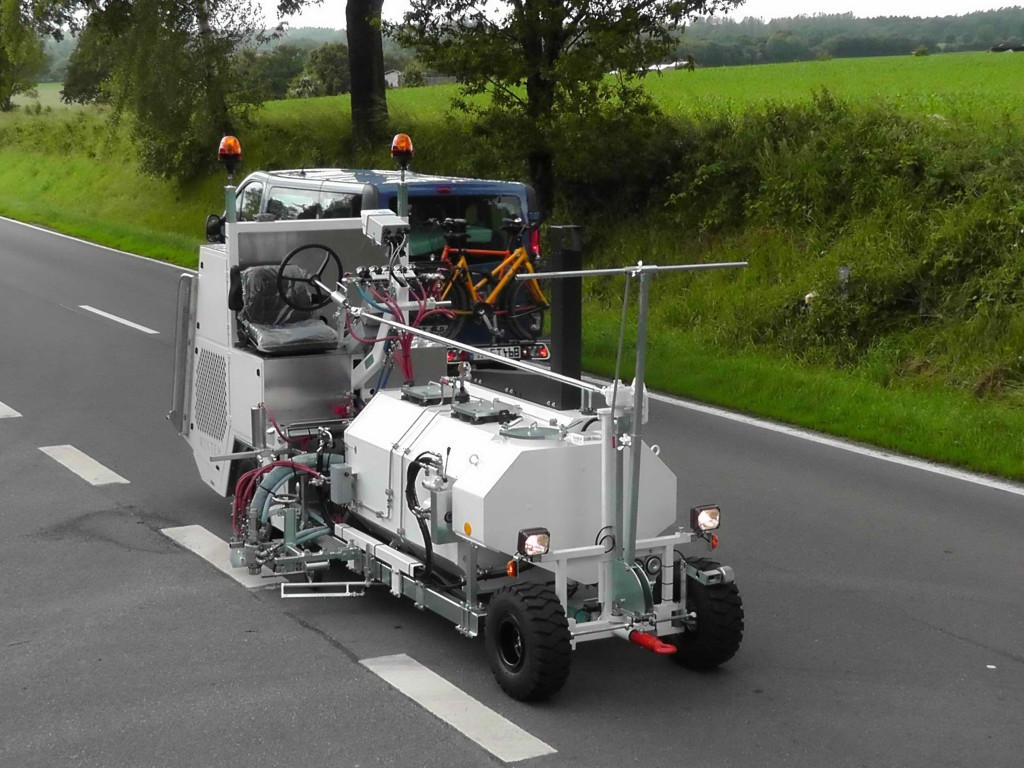

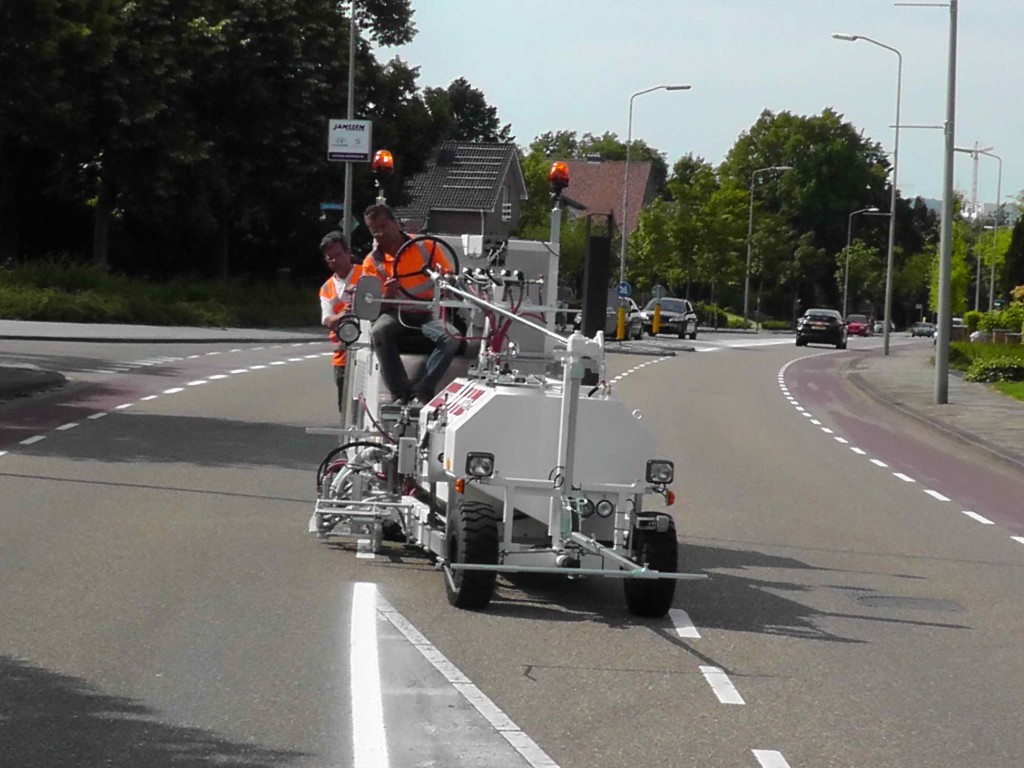

Road marking machine for hot sprayplastic
| Machine Type | Road marking machine WTS 351 GTLR |
| Engine | Perkins 404D-22T, 60,8 HP (44,7 kW) |
| Fuel | diesel, capacity 50 liter |
| Electrical system | 12 V, battery 88 Ah |
| Steering | strong standard mechanical steering, on request hydraulic assisted steering / hydraulic |
| Drive / brake system | hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake |
| Wheels | front: 21×8 – 9, 5 hole-rim / rear: 6.50-10PR, 5 hole-rim |
| Compressor | Boge screw type compressor, mechanically driven by poly-v-belt, effective air supply 1500 or 2300 l/min |
| Operating air pressure | 7 bar, automatically controlled |
| Material pressure container | 360 ltr., with agitator, oil burner heating |
| Glass bead pressure container | 158 ltr. or 2x 105 ltr., with water pre separator, on request filling sieve / filling level monitor |
| Glass bead tank unpressurized | on request, 300 ltr. |
| Atomizing air heating | innovative atomizing air heating integrated in thermal oil jacket of the container, 150°C – 175°C |

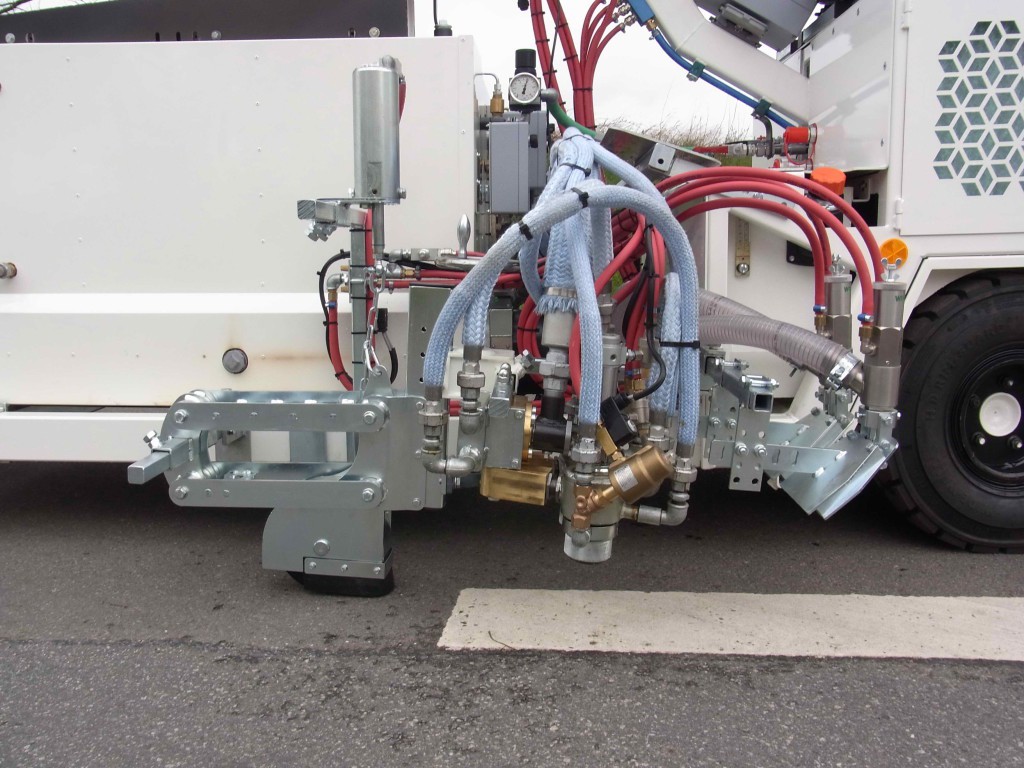

| Marker unit | adjusting spindle with outrigger and wheel |
| Glass bead equipment | glass bead gun |
| Empty- / total weight | approx. 2500 kg / 3800 kg |
| Dimensions Length x width x height | approx. 5,36 m x 1,20 m x 2,52 m (without equipment) |
Right of technical modifications reserved |
State of art: 28.01.2015_en |
