Bitumen boiler REKORD 19, 29, and 49
Powerful small bitumen boiler with propane burner
High-performance small bitumen boilers with removable tub. Heating is by means of a windshielded propane vortex beam burner. Construction and fitting comply with the regulations of the German Bau-Berufsgenossenschaft (construction liability insurance).
With the boiler types 19 and 29 the tub can be easily pulled out and used as a bucket. The equipment of the bitumen boiler 49 includes a lockable hinged lid, lackable drain cook, double jacket insulation and, on request, a dial thermometer for temperature control.

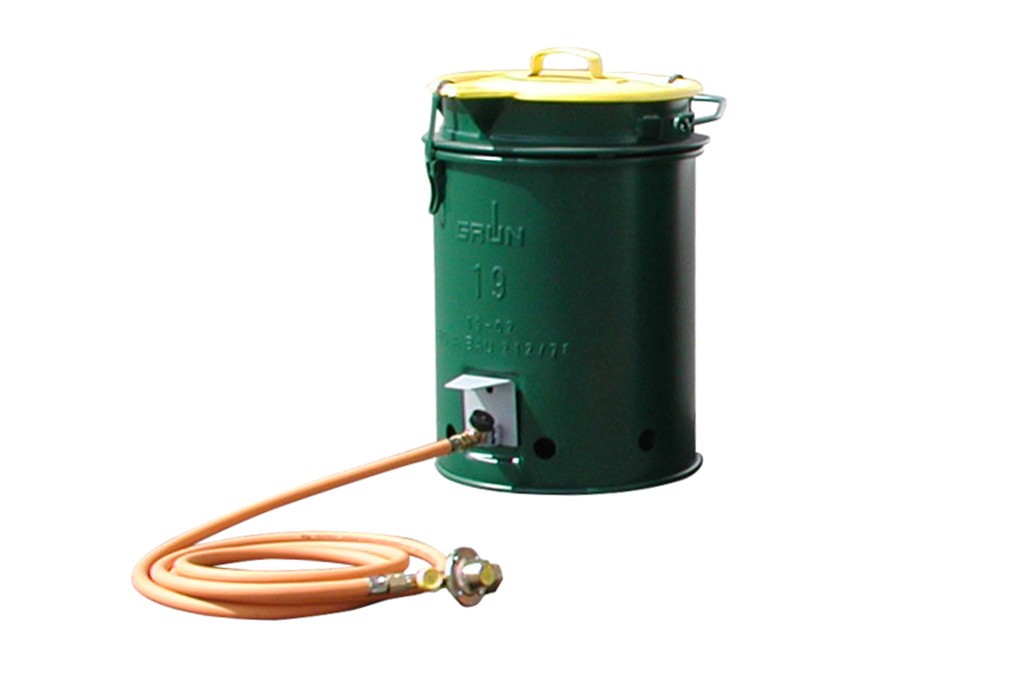

Technical data REKORD 19:
| Content: | approx. 19 l |
| Bitumen through-put: | 40 l/h |
| Max. propane consumpt.: | approx. max. 0,6 kg/h |
| Operating pressure: | 1,5 bar |
| Weight: | approx. 13 kg |

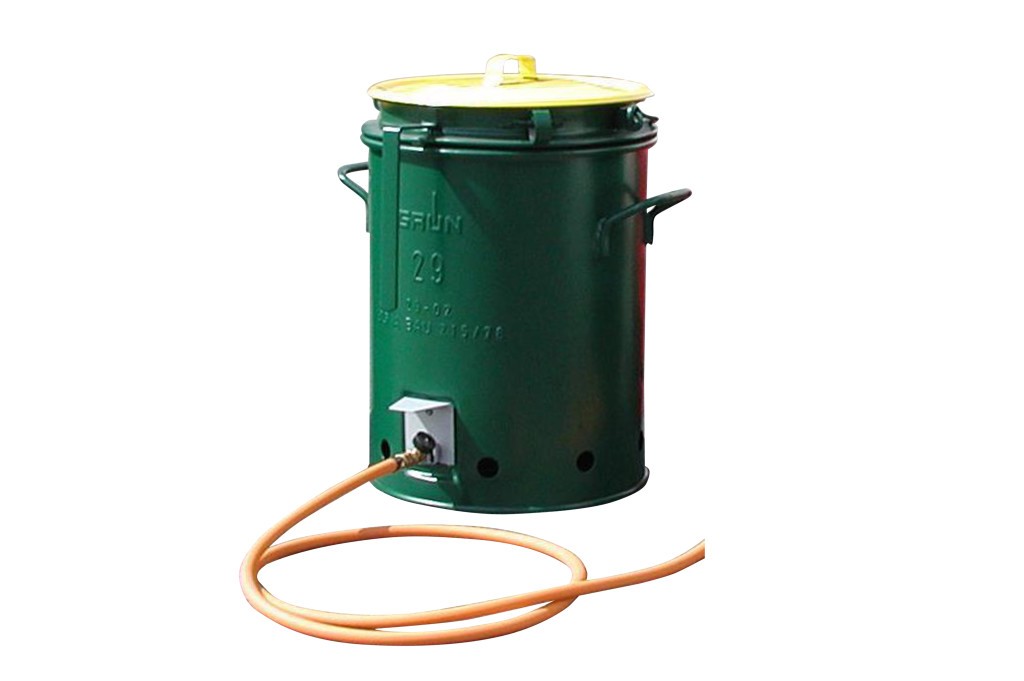

Technical data REKORD 29:
| Content: | approx. 29 l |
| Bitumen through-put: | 60 l/h |
| Max. propane consumpt.: | approx. max. 0,8 kg/h |
| Operating pressure: | 1,5 bar |
| Weight: | approx. 27 kg |

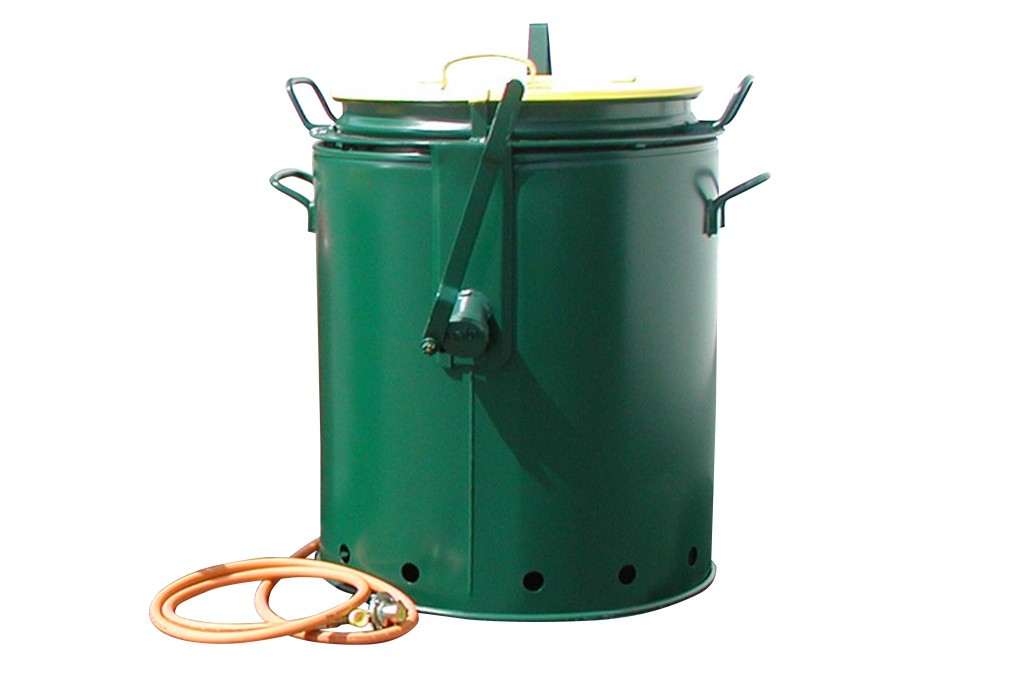

Technical data REKORD 49:
| Content: | approx. 49 l |
| Bitumen through-put: | 100 l/h |
| Max. propane consumpt.: | approx. max. 1,4 kg/h |
| Operating pressure: | 1,5 bar |
| Weight: | approx. 49 kg |
| Product | Part No. | Figure |
|---|---|---|
| Bitumen boiler REKORD 19 l | 0201 0000 |  |
| Bitumen boiler REKORD 29 l | 0202 0000 |  |
| Bitumen boiler REKORD 49 l | 0203 0000 |  |
